Spring frame seat front for BMW 5 Series E28 535i (1987)

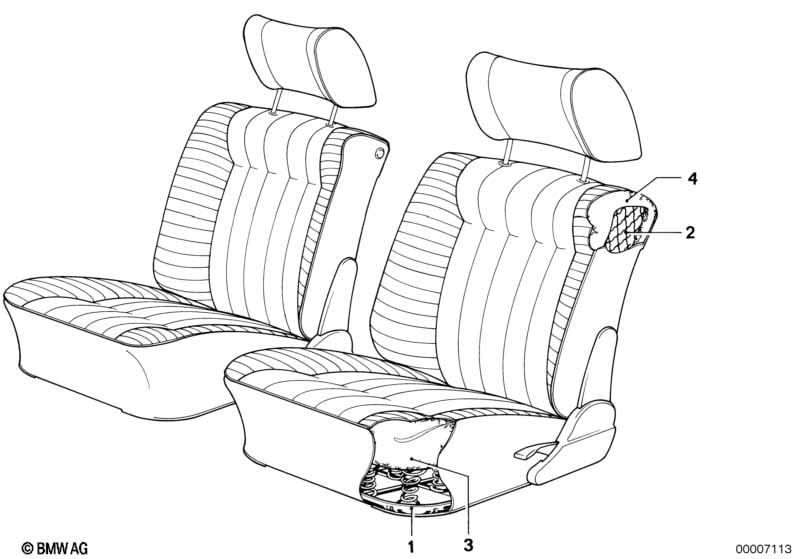

This Spring frame seat front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 724-725 | |||||||||
| 01 | Spring frame lower seat | 2 | 09/1984 | 52101926674 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spring frame backrest front | 2 | 09/1984 | 52101931813 | $132.37 | Shop at ECS Tuning | ||||
| 03 | Pad seat front | 2 | 09/1984 | 52101935172 | $91.45 | ENDED | Shop at ECS Tuning | |||
| 04 | Pad seat backrest front | 2 | 09/1984 | 52101931799 | $91.45 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Spring frame seat front?
- This technical diagram illustrates the Spring frame seat front within the Seats group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Spring frame lower seat (Part #52101926674).
- Which models use the hardware listed in this Spring frame seat front?
- The hardware and components featured in the Spring frame seat front are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Spring frame lower seat (52101926674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Spring frame seat front assembly?
- Each item in the Spring frame seat front corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Spring frame lower seat by locating its position on the schematic, which then links to the official BMW part number 52101926674 for the Seats section.
