Cover f reclining front seat fitting for BMW 7 Series E23 732i (1982)

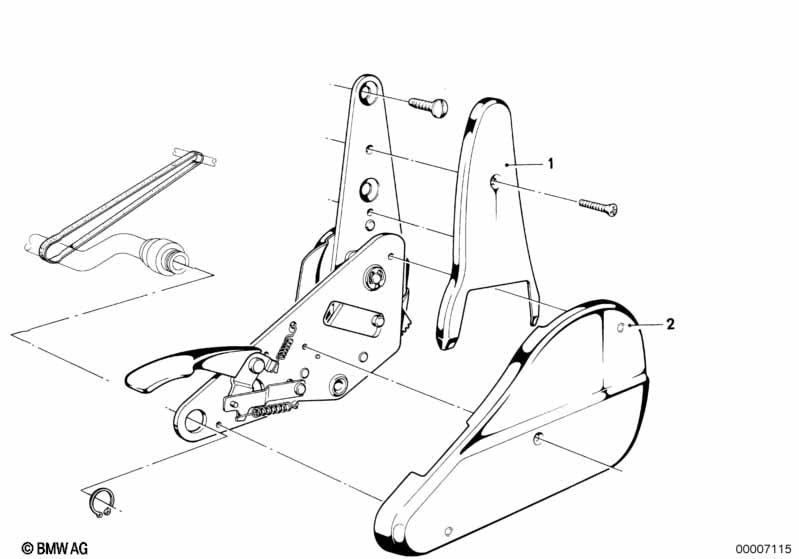

This Cover f reclining front seat fitting technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Covering lower outer right | MOCCA | 1 | 09/1979 | 09/1982 | 52101877270 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower outer right | MOCCA | 1 | 09/1979 | 09/1982 | 52101877270 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower outer right | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877272 | $11.83 | ENDED | Shop at ECS Tuning | |
| 02 | Covering lower outer right | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877272 | $11.83 | ENDED | Shop at ECS Tuning | |
| 02 | Covering lower inner left | MOCCA | 1 | 09/1979 | 09/1982 | 52101877273 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner left | MOCCA | 1 | 09/1979 | 09/1982 | 52101877273 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner right | MOCCA | 1 | 09/1979 | 09/1982 | 52101877274 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner right | MOCCA | 1 | 09/1979 | 09/1982 | 52101877274 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner left | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877275 | $11.83 | ENDED | Shop at ECS Tuning | |
| 02 | Covering lower inner left | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877275 | $11.83 | ENDED | Shop at ECS Tuning | |
| 02 | Covering lower inner right | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877276 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner right | PERGAMENT | 1 | 09/1979 | 09/1982 | 52101877276 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower outer right | ANTHRAZIT | 1 | 09/1979 | 52101852834 | $10.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner left | ANTHRAZIT | 1 | 09/1979 | 52101852845 | $10.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering lower inner right | ANTHRAZIT | 1 | 09/1979 | 52101852846 | $11.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
