Front seat rail for BMW 7 Series E23 728i (1986)

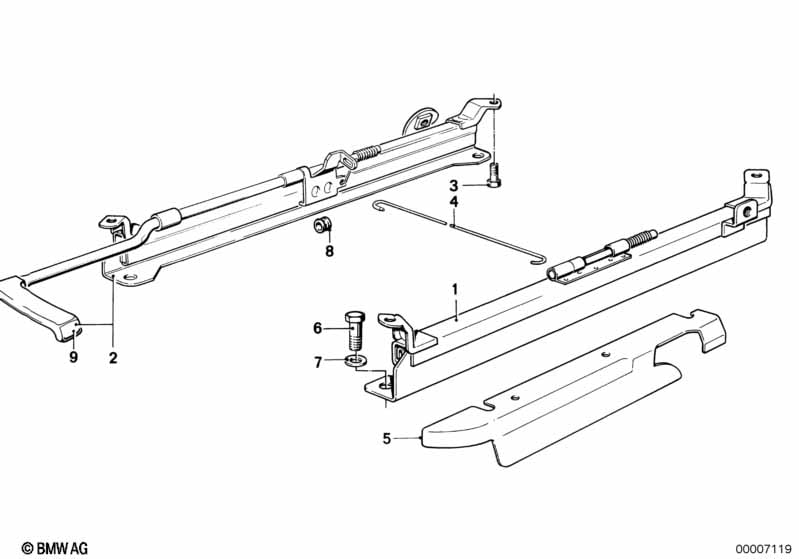

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat rail outer left | 1 | 01/1980 | 52101873549 | $252.72 | Shop at ECS Tuning | ||||
| 01 | Seat rail outer right | 1 | 01/1980 | 52101873550 | $252.72 | Shop at ECS Tuning | ||||
| 02 | Seat rail inner left | 1 | 01/1980 | 52101873551 | $59.36 | Shop at ECS Tuning | ||||
| 02 | Seat rail inner right | 1 | 01/1980 | 52101873552 | $59.36 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X18 | 4 | 01/1980 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | ||
| 04 | Connection rod, seat catch, left | 1 | 01/1980 | 52101877335 | $1.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Connection rod, seat catch, right | 1 | 01/1980 | 52101877336 | $1.64 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering outer left | ANTHRAZIT | 1 | 01/1980 | 52101873513 | $8.99 | Shop at ECS Tuning | |||
| 05 | Covering outer right | ANTHRAZIT | 1 | 01/1980 | 52101873514 | $8.99 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering outer left | LAMA | 1 | 01/1985 | 52101919767 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering outer right | LAMA | 1 | 01/1985 | 52101919768 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering outer left | PACIFIC | 1 | 01/1985 | 52101929079 | $5.58 | Shop at ECS Tuning | |||
| 05 | Covering outer right | PACIFIC | 1 | 01/1985 | 52101929080 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering outer left | PINIENGRUEN | 1 | 01/1985 | 52101929081 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering outer right | PINIENGRUEN | 1 | 01/1985 | 52101929082 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 06 | Hex bolt | M10X25 8.8 | X | 01/1980 | 07119908569 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X25-8.8 ZN | X | 01/1980 | 07119913834 | $0.71 | Shop at ECS Tuning | |||
| 07 | Wave washer | B10-ZNS3 | X | 01/1980 | 07119904463 | Shop at ECS Tuning | ||||
| 08 | Grommet | 1 | 01/1980 | 52101807432 | $7.28 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle left | 1 | 01/1980 | 52101873447 | $2.88 | Shop at ECS Tuning | ||||
| 09 | Handle right | 1 | 01/1980 | 52101873448 | $2.88 | Shop at ECS Tuning |
