Front seat-vertical seat adjuster for BMW 5 Series E28 535i (1987)

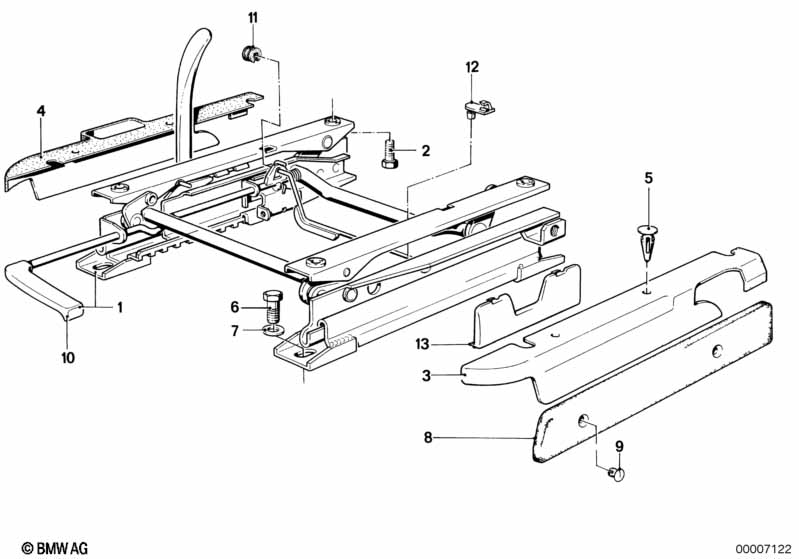

This Front seat-vertical seat adjuster technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vertical seat adjuster left | 1 | 52101873547 | $407.34 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vertical seat adjuster right | 1 | 52101873548 | $407.34 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X18 | X | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering outer left | ANTHRAZIT | 1 | 52101873513 | $8.99 | Shop at ECS Tuning | ||||
| 03 | Covering outer right | ANTHRAZIT | 1 | 52101873514 | $8.99 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering outer left | NUTRIA | 1 | 09/1982 | 52101912381 | $10.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer right | NUTRIA | 1 | 09/1982 | 52101912382 | $11.05 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer left | PERLBEIGE | 1 | 09/1982 | 52101912383 | $8.99 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer right | PERLBEIGE | 1 | 09/1982 | 52101912384 | $8.99 | Shop at ECS Tuning | |||
| 03 | Covering outer left | LAMA | 1 | 09/1984 | 52101919767 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer right | LAMA | 1 | 09/1984 | 52101919768 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer left | PACIFIC | 1 | 09/1984 | 52101929079 | $5.58 | Shop at ECS Tuning | |||
| 03 | Covering outer right | PACIFIC | 1 | 09/1984 | 52101929080 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer left | PINIENGRUEN | 1 | 09/1984 | 52101929081 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering outer right | PINIENGRUEN | 1 | 09/1984 | 52101929082 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 05 | Clip | X | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M10X25 8.8 | X | 07119908569 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M10X25-8.8 ZN | X | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Covering lower outer | ANTHRAZIT | 2 | 52101881770 | $9.58 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering lower outer | LAMA | 2 | 09/1984 | 52101919775 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering lower outer | PACIFIC | 2 | 09/1984 | 52101931804 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering lower outer | NUTRIA | 2 | 09/1984 | 52101931805 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering lower outer | PERLBEIGE | 2 | 09/1984 | 52101931806 | $9.25 | ENDED | Shop at ECS Tuning | ||
| 08 | Covering lower outer | PINIENGRUEN | 2 | 09/1984 | 52101931807 | ENDED | Shop at ECS Tuning | |||
| 09 | Push-button | SCHWARZ | X | 52101873545 | $1.34 | Shop at ECS Tuning | ||||
| 09 | Push-button | LAMA | 4 | 09/1984 | 52101919776 | ENDED | Shop at ECS Tuning | |||
| 09 | Push-button | PACIFIC | X | 09/1984 | 52101931809 | $0.61 | ENDED | Shop at ECS Tuning | ||
| 09 | Push-button | NUTRIA | X | 09/1984 | 52101931810 | ENDED | Shop at ECS Tuning | |||
| 09 | Push-button | PERLBEIGE | X | 09/1984 | 52101931811 | $0.71 | Shop at ECS Tuning | |||
| 09 | Push-button | PINIENGRUEN | X | 09/1984 | 52101931812 | ENDED | Shop at ECS Tuning | |||
| 10 | Handle left | 1 | 52101873447 | $2.88 | Shop at ECS Tuning | |||||
| 10 | Handle right | 1 | 52101873448 | $2.88 | Shop at ECS Tuning | |||||
| 11 | Grommet | 2 | 52101903872 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grommet | 2 | 52109055959 | $0.31 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 52101903871 | $0.71 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 52109055958 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover | RENTROP | 2 | 52101903010 | $5.19 | ENDED | Shop at ECS Tuning |
