Fitting f reclining front seat for BMW 7 Series E23 728 (1979)

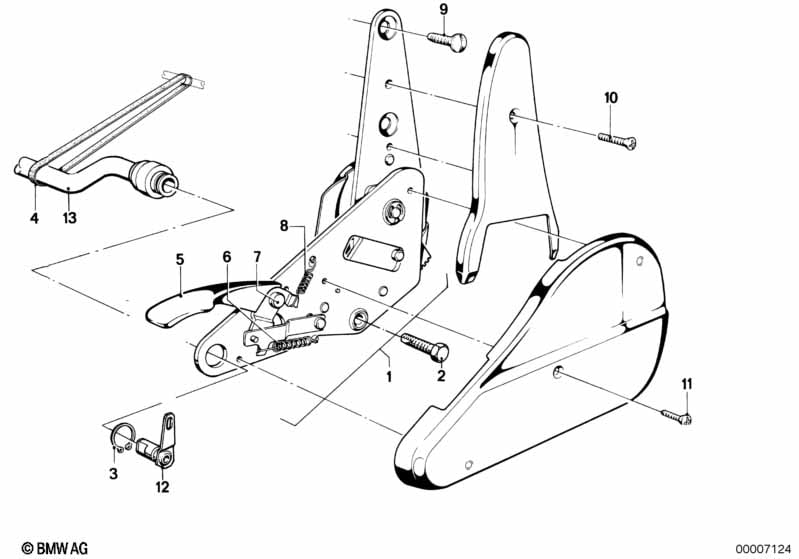

This Fitting f reclining front seat technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recl.seat fitting outer left | 1 | 52101841423 | $72.86 | Shop at ECS Tuning | |||||
| 01 | Recl.seat fitting outer right | 1 | 52101841424 | $72.86 | ENDED | Shop at ECS Tuning | ||||
| 01 | Recl.seat fitting inner left | 1 | 52101841425 | $56.09 | Shop at ECS Tuning | |||||
| 01 | Recl.seat fitting inner right | 1 | 52101841426 | $56.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Fitting f reclining front seat?
- This technical diagram illustrates the Fitting f reclining front seat within the Seats group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Recl.seat fitting outer left (Part #52101841423).
- Which models use the hardware listed in this Fitting f reclining front seat?
- The hardware and components featured in the Fitting f reclining front seat are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Recl.seat fitting outer left (52101841423) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fitting f reclining front seat assembly?
- Each item in the Fitting f reclining front seat corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Recl.seat fitting outer left by locating its position on the schematic, which then links to the official BMW part number 52101841423 for the Seats section.
