Seat front seat coverings for BMW 3 Series E30 320i (1989)

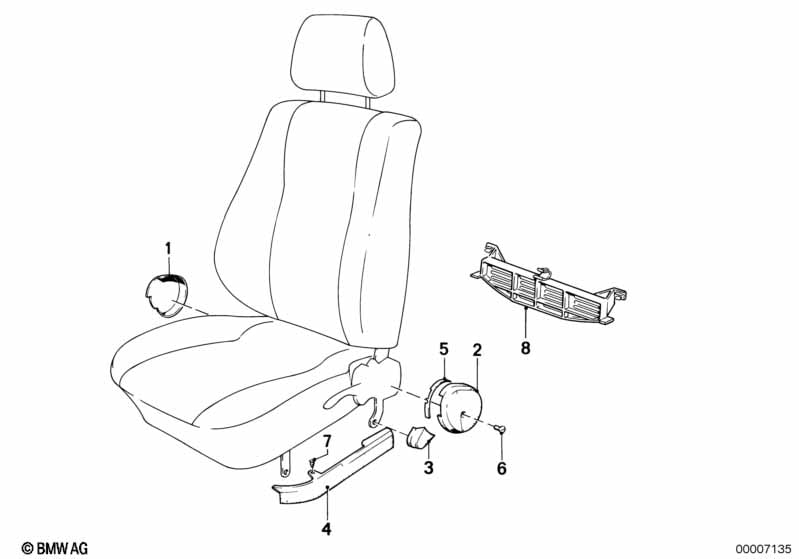

This Seat front seat coverings technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 310 | |||||||||
| 01 | Covering inner left | ANTHRAZIT | 1 | 52101904821 | $6.51 | Shop at ECS Tuning | ||||
| 01 | Covering inner right | ANTHRAZIT | 1 | 52101904822 | $6.51 | Shop at ECS Tuning | ||||
| 02 | Cover panel outer left | ANTHRAZIT | 1 | 52101904819 | $6.51 | Shop at ECS Tuning | ||||
| 02 | Cover panel outer right | ANTHRAZIT | 1 | 52101904820 | $3.67 | Shop at ECS Tuning | ||||
| 05 | Slider | ANTHRAZIT | 4 | 52101913999 | $0.95 | Shop at ECS Tuning | ||||
| 06 | Push-button | ANTHRAZIT | 2 | 52101906933 | $0.41 | Shop at ECS Tuning | ||||
| 07 | Clip | 1 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 08 | Covering rear | 2 | 52101922210 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
