Head rest support for BMW 5 Series E28 528e (1987)

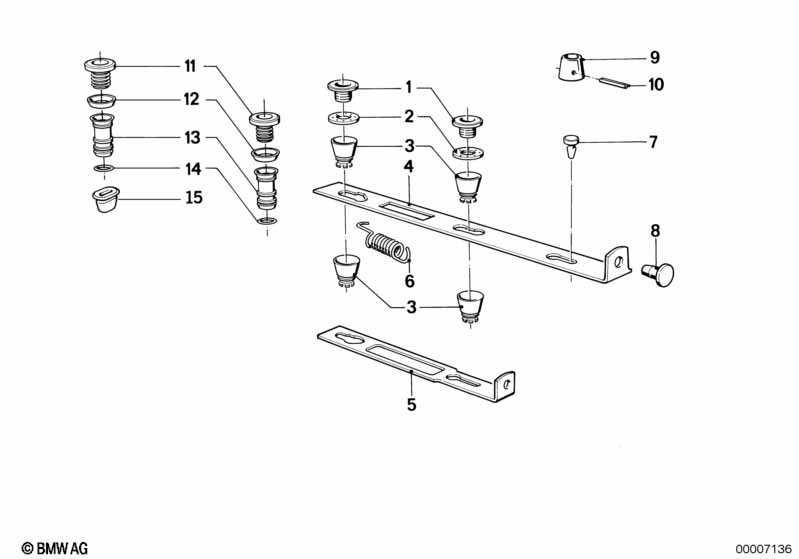

This Head rest support technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 524-526/544-546 | |||||||||
| Ausführung 524/544 | ||||||||||
| 01 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| Ausführung 525-526/545-546 | ||||||||||
| 11 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 12 | Covering Lower | 4 | 09/1984 | 52101838969 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Guide bush | 4 | 06/1985 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 14 | Spring washer | 4 | 06/1985 | 52101928809 | $0.23 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Head rest support?
- This technical diagram illustrates the Head rest support within the Seats group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #52108191245).
- Which models use the hardware listed in this Head rest support?
- The hardware and components featured in the Head rest support are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Cover (52108191245) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Head rest support assembly?
- Each item in the Head rest support corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 52108191245 for the Seats section.
