Reclining seat fitting for BMW 3 Series E30 M3 (1990)

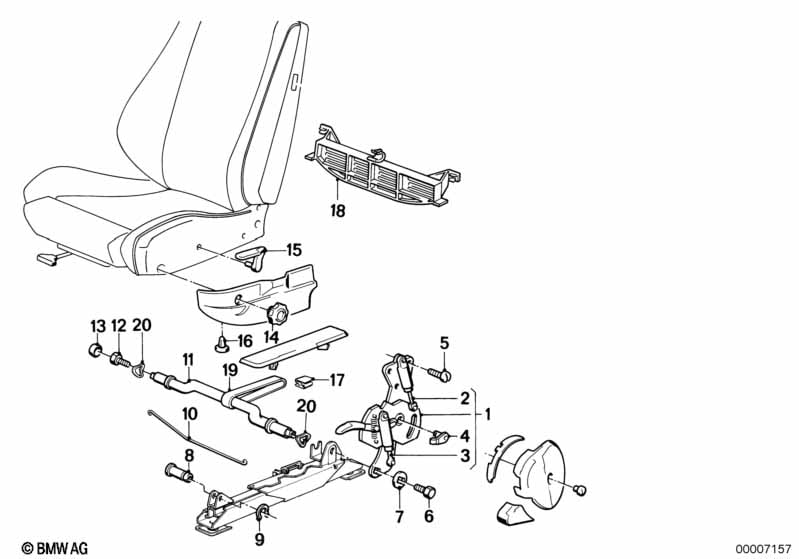

This Reclining seat fitting technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 310 | |||||||||
| 01 | Recl.seat fitting outer left | 1 | 09/1985 | 52101922147 | $119.68 | Shop at ECS Tuning | ||||
| 01 | Recl.seat fitting outer right | 1 | 09/1985 | 52101922148 | $119.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Recl.seat fitting inner left | 1 | 09/1985 | 52101922149 | $119.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Recl.seat fitting inner right | 1 | 09/1985 | 52101922150 | $119.68 | Shop at ECS Tuning | ||||
| 02 | Gas pressurized spring backrest adjuster | GESCHL. AUGE | 2 | 09/1985 | 52101916596 | $33.25 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 02 | Gas pressurized spring backrest adjuster | OFFENES AUGE | 2 | 09/1985 | 52101965632 | $48.41 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Axial securing clip | 5,75MM | 2 | 09/1985 | 52207115704 | $0.32 | Shop at ECS Tuning | |||
| 03 | Gas pressurized spring vert.seat adjust. | GESCHL. AUGE | 2 | 09/1985 | 52101916601 | $30.68 | Shop at ECS Tuning | |||
| 04 | Transfer lever | 2 | 09/1985 | 52101906417 | $4.67 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M6X12-Z1 | 4 | 09/1985 | 07119907596 | $0.36 | Shop at ECS Tuning | |||
| 06 | Hex bolt | 7/16" 20MM | 2 | 09/1985 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 07 | Shim | 2 | 09/1985 | 52101906963 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 08 | Bolt | 4 | 09/1985 | 52101919478 | $1.77 | Shop at ECS Tuning | ||||

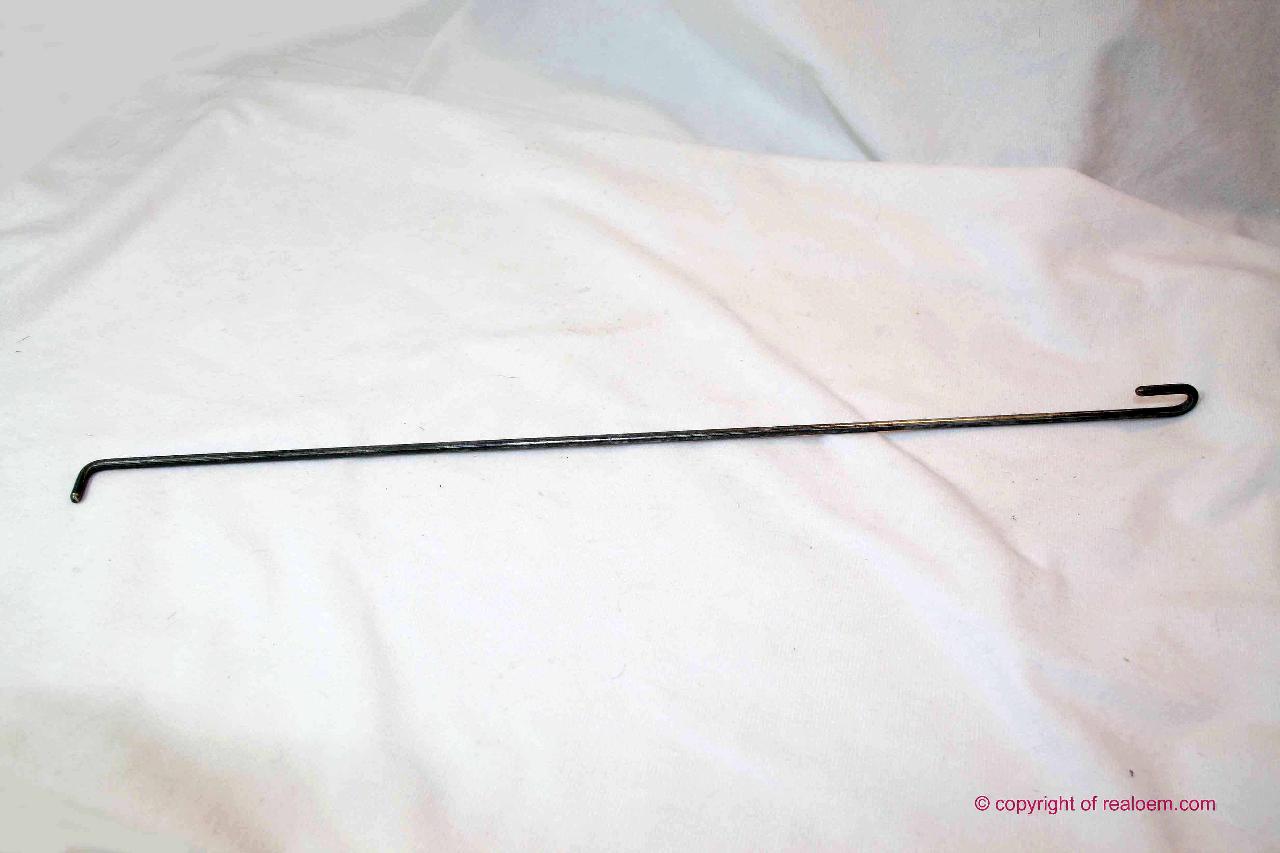

| 10 | Connection rod, seat catch | 2 | 09/1985 | 52101906587 | $1.86 | Shop at ECS Tuning | ||||
| 11 | Connection pipe | 2 | 09/1985 | 52101941560 | $18.48 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | 7/16" 20MM | 2 | 09/1985 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 13 | Covering cap | ANTHRAZIT | 2 | 09/1985 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | ||
| 14 | Control handle | 2 | 09/1985 | 52101922269 | $6.70 | Shop at ECS Tuning | ||||
| 15 | Lever left | 1 | 03/1986 | 52101953689 | $27.43 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M5X20 | 2 | 03/1986 | 52101954098 | $0.20 | Shop at ECS Tuning | |||
| -- | Recessed oval head sheet-metal screw | ST3,5X9,5 | 2 | 03/1986 | 07119902524 | $0.82 | Shop at ECS Tuning | |||
| 15 | Lever right | 1 | 03/1986 | 52101953690 | $21.63 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M5X20 | 2 | 03/1986 | 52101954098 | $0.20 | Shop at ECS Tuning | |||
| -- | Recessed oval head sheet-metal screw | ST3,5X9,5 | 2 | 03/1986 | 07119902524 | $0.82 | Shop at ECS Tuning | |||
| 16 | Clip | 2 | 09/1985 | 52101873544 | $0.20 | Shop at ECS Tuning | ||||
| 19 | Rubber Ring | 2 | 09/1985 | 52101843100 | $0.54 | Shop at ECS Tuning | ||||
| 20 | Wave washer | 16,5 / 22 | 4 | 09/1985 | 52101919975 | $2.09 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
