BMW sportseat headrest guide for BMW 7 Series E23 733i (1981)

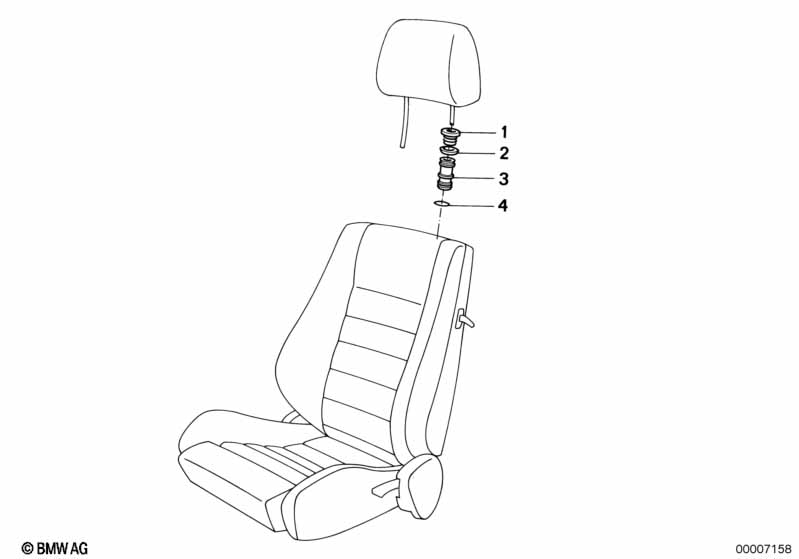

This BMW sportseat headrest guide technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 723-724-725 | |||||||||
| 01 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 02 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 03 | Guide | 4 | 06/1985 | 52101904817 | $6.37 | Shop at ECS Tuning | ||||
| 04 | Snap ring | A18 | 4 | 06/1985 | 07119933518 | $0.17 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i BMW sportseat headrest guide?
- This technical diagram illustrates the BMW sportseat headrest guide within the Seats group for the 7 Series E23 733i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #52108191245).
- Which models use the hardware listed in this BMW sportseat headrest guide?
- The hardware and components featured in the BMW sportseat headrest guide are specific to the 7 Series E23 733i produced during 1981. These technical specifications ensure that parts like the Cover (52108191245) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sportseat headrest guide assembly?
- Each item in the BMW sportseat headrest guide corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 52108191245 for the Seats section.
