BMW sports seat coverings for BMW 5 Series E28 535i (1987)

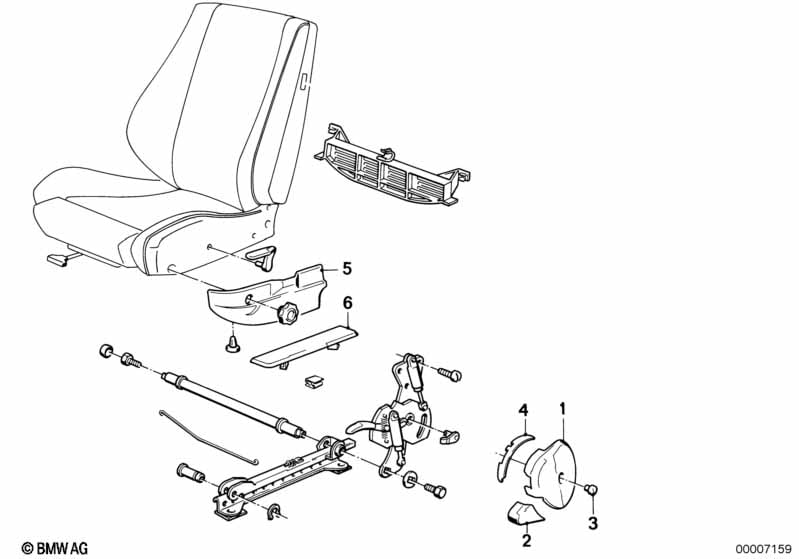

This BMW sports seat coverings technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 544-545-546 | |||||||||
| 02 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 03 | Push-button | ANTHRAZIT | 4 | 52101906933 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Push-button | NUTRIA | 4 | 52101926811 | $0.71 | ENDED | Shop at ECS Tuning | |||
| 03 | Push-button | PERLBEIGE | 4 | 52101926812 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Push-button | LAMA | 4 | 09/1984 | 52101919788 | $0.71 | ENDED | Shop at ECS Tuning | ||
| 03 | Push-button | PACIFIC | 4 | 09/1984 | 52101930487 | $0.62 | ENDED | Shop at ECS Tuning | ||
| 03 | Push-button | PINIENGRUEN | 4 | 09/1984 | 52101930488 | $0.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Slider | ANTHRAZIT | 2 | 52101913999 | $0.95 | Shop at ECS Tuning | ||||
| 04 | Slider | NUTRIA | 2 | 52101926799 | ENDED | Shop at ECS Tuning | ||||
| 04 | Slider | PERLBEIGE | 2 | 52101926800 | ENDED | Shop at ECS Tuning | ||||
| 04 | Slider | LAMA | 2 | 09/1984 | 52101919807 | ENDED | Shop at ECS Tuning | |||
| 04 | Slider | PACIFIC | 2 | 09/1984 | 52101930383 | ENDED | Shop at ECS Tuning | |||
| 04 | Slider | PINIENGRUEN | 2 | 09/1984 | 52101930384 | $0.98 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
