BMW sports seat cover for BMW 5 Series E34 525i (1990)

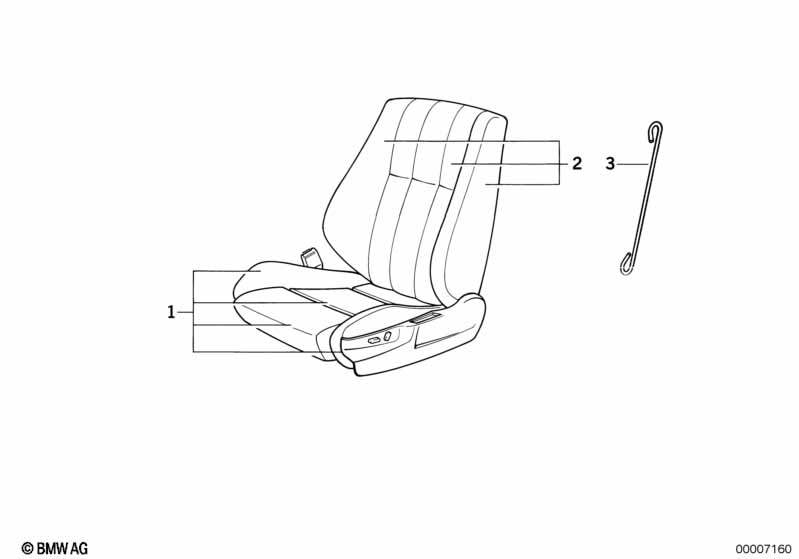

This BMW sports seat cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat cover cloth | 0269 ANTHRAZIT | 2 | 09/1990 | 52108110151 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0270 SILBER | 2 | 09/1990 | 52108110152 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0271 INDIGO | 2 | 09/1990 | 52108110153 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0272 HAVANNA | 2 | 09/1990 | 52108110154 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0273 NATUR | 2 | 09/1990 | 52108110155 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | 0166 SCHWARZ | 2 | 09/1990 | 52108110163 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | 0191 INDIGO | 2 | 09/1990 | 52108110164 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | 0192 NATUR | 2 | 09/1990 | 52108110165 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0240/0297 siam-grau, 0241/0298 havanna, 0301/0308/0322 siam-grau 88, 0302/0309/0272 havanna 88 |
||||||||||
| 01 | Seat cover leather | 0240/0297 SIAMG | 2 | 09/1990 | 52108101824 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0241/0298 HAVAN | 2 | 09/1990 | 52108101825 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0301/0308/0322 | 2 | 09/1990 | 52108111697 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0302/0309/0372 | 2 | 09/1990 | 52108111698 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BISON 0203/0325/0366 schwarz, 0292/0326/0367 silber, 0293/0327/0368 indigo, 0295/0328/0370 natur I, 7295/7328/7370 natur II, 0324/0329/0369 karmesin-rot |
||||||||||
| 01 | Seat cover leather | SILBER | 2 | 09/1990 | 52108110168 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | INDIGO | 2 | 09/1990 | 52108110169 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | NATUR | 2 | 09/1990 | 52108110170 | $677.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0296 CARDIN.ROT | 2 | 09/1990 | 52108137156 | $677.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | SCHWARZ | 2 | 09/1992 | 52108110167 | $677.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | KARMESINROT | 2 | 09/1992 | 52108110171 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0269 ANTHRAZIT | 2 | 09/1990 | 52108110173 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0270 SILBER | 2 | 09/1990 | 52108110174 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0271 INDIGO | 2 | 09/1990 | 52108110175 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0272 HAVANNA | 2 | 09/1990 | 52108110176 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0273 NATUR | 2 | 09/1990 | 52108110177 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0166 SCHWARZ | 2 | 09/1990 | 52108110185 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0191 INDIGO | 2 | 09/1990 | 52108110186 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0192 NATUR | 2 | 09/1990 | 52108110187 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BISON 0203/0325/0366 schwarz, 0292/0326/0367 silber, 0293/0327/0368 indigo, 0295/0328/0370 natur I, 7295/7328/7370 natur II, 0324/0329/0369 karmesin-rot |
||||||||||
| 02 | Cover backrest, leather | SILBER | 2 | 09/1990 | 52108110190 | $536.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | INDIGO | 2 | 09/1990 | 52108110191 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | NATUR | 2 | 09/1990 | 52108110192 | $536.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0296 CARDIN.ROT | 2 | 09/1990 | 52108137157 | $526.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | SCHWARZ | 2 | 09/1992 | 52108110189 | $536.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | KARMESINROT | 2 | 09/1992 | 52108110193 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0240/0297 siam-grau, 0241/0298 havanna, 0301/0308/0322 siam-grau 88, 0302/0309/0372 havanna 88 |
||||||||||
| 02 | Cover backrest, leather | 0240/0297 SIAMG | 2 | 09/1990 | 52108101846 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0241/0298 HAVAN | 2 | 09/1990 | 52108101847 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0301/0308/0322 | 2 | 09/1990 | 52108111851 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0302/0309/0372 | 2 | 09/1990 | 52108111852 | ENDED | Shop at ECS Tuning | |||
| 03 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
