Center armrest rear for BMW 7 Series E23 728iS (1982)

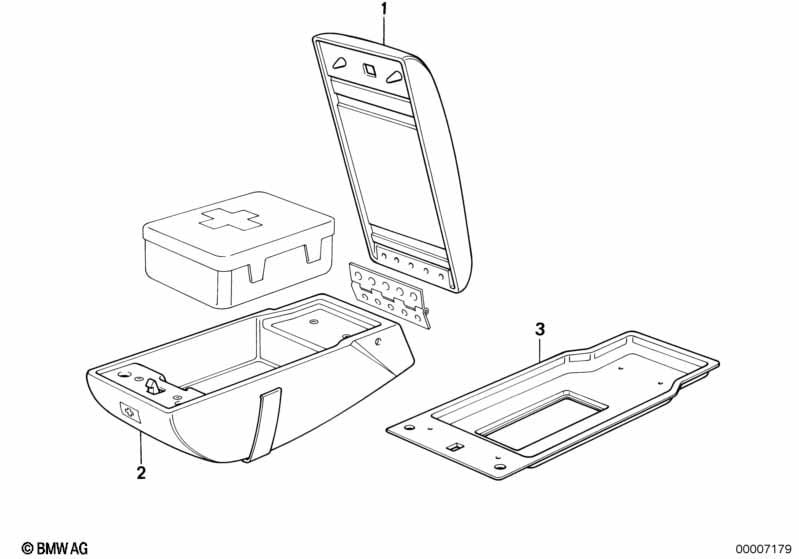

This Center armrest rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 701-702 | |||||||||
| 01 | Armrest upper vinyl pacific | 0105 | 1 | 09/1979 | 09/1984 | 52201877477 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper vinyl mocca | 0106 | 1 | 09/1979 | 09/1984 | 52201877478 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper vinyl pergament | 0107 | 1 | 09/1979 | 09/1984 | 52201877479 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0108 PACIFIC | 1 | 09/1979 | 09/1984 | 52201877480 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0109 MOCCA | 1 | 09/1979 | 09/1984 | 52201877481 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0110 PERGAMENT | 1 | 09/1979 | 09/1984 | 52201877482 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0113 SCHWARZ | 1 | 09/1979 | 09/1984 | 52201882907 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper vinyl piniengrün | 0126 | 1 | 09/1979 | 09/1984 | 52201907418 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0127 PINIENGR. | 1 | 09/1979 | 09/1984 | 52201907419 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper vinyl nutria | 0164 | 1 | 09/1979 | 09/1984 | 52201914537 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper vinyl perlbeige | 0165 | 1 | 09/1979 | 09/1984 | 52201914538 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0159 SCHWARZ | 1 | 09/1979 | 09/1984 | 52201914605 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0160 PACIFIC | 1 | 09/1979 | 09/1984 | 52201914606 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0157 NUTRIA | 1 | 09/1979 | 09/1984 | 52201914607 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest upper leather | 0158 PERLBEIGE | 1 | 09/1979 | 09/1984 | 52201914608 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Center armrest rear?
- This technical diagram illustrates the Center armrest rear within the Seats group for the 7 Series E23 728iS produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Armrest upper vinyl pacific (Part #52201877477).
- Which models use the hardware listed in this Center armrest rear?
- The hardware and components featured in the Center armrest rear are specific to the 7 Series E23 728iS produced during 1982. These technical specifications ensure that parts like the Armrest upper vinyl pacific (52201877477) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center armrest rear assembly?
- Each item in the Center armrest rear corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Armrest upper vinyl pacific by locating its position on the schematic, which then links to the official BMW part number 52201877477 for the Seats section.
