BMW sportseat el.adj. seat height for BMW 5 Series E28 535i (1987)

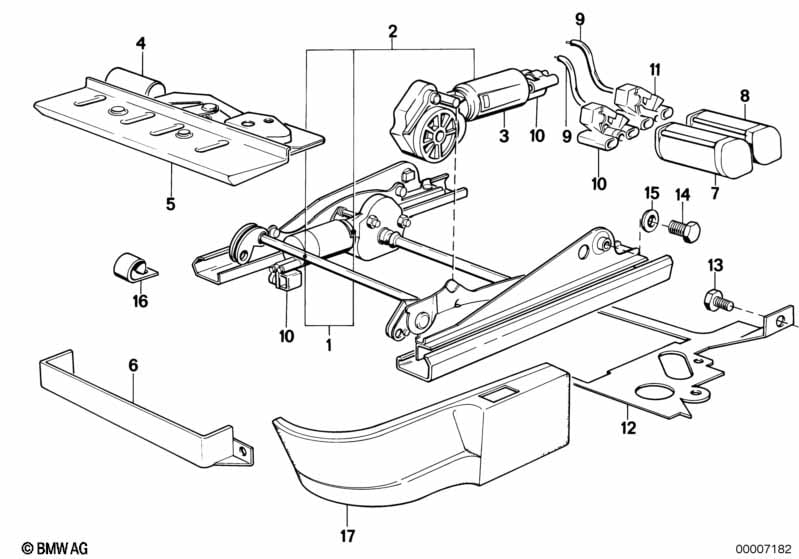

This BMW sportseat el.adj. seat height technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 546 | |||||||||
| 01 | Vertical seat adjuster electr. | 2 | 01/1986 | 52101937786 | $490.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory |
=Yes |
|||||||||
| 02 | Vertical seat adjuster electr. | 1 | 01/1986 | 52101934569 | $778.41 | ENDED | Shop at ECS Tuning | |||
| 03 | Actuator vertical seat adjuster front | 2 | 01/1986 | 52101377124 | $133.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory |
=Yes |
|||||||||
| 03 | Actuator vertical seat adjuster front | 1 | 01/1986 | 52101382950 | $181.93 | ENDED | Shop at ECS Tuning | |||
| 03 | Actuator vertical seat adjuster front | 1 | 01/1986 | 52101377124 | $133.12 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Voltage regulator | 1 | 01/1986 | 61311373109 | $52.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Actuator horizontal adjustement | 1 | 01/1986 | 52101382951 | $342.61 | ENDED | Shop at ECS Tuning | |||
| 03 | Actuator horizontal adjustement | 1 | 01/1986 | 52101377123 | $193.07 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Voltage regulator | 1 | 01/1986 | 61311373109 | $52.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Actuator thigh support | 2 | 01/1986 | 52101934552 | $199.86 | ENDED | Shop at ECS Tuning | |||
| 05 | Carrier thigh support | 2 | 01/1986 | 52101922270 | $40.74 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 2 | 01/1986 | 52101919098 | $6.50 | ENDED | Shop at ECS Tuning | |||
| 07 | Actuator vertical seat adjuster rear | BROSE | 2 | 01/1986 | 52101377044 | $75.88 | Shop at ECS Tuning | |||
| 08 | Actuator back rest | BROSE | 2 | 01/1986 | 52101377043 | $64.59 | Shop at ECS Tuning | |||
| 09 | Flex.backrest adjusting shaft | L=230MM | 4 | 01/1986 | 52101940403 | $15.86 | Shop at ECS Tuning | |||
| 09 | Flex.shaft vertical seat adjuster rear | L=235MM | 4 | 01/1986 | 52101940404 | $15.86 | Shop at ECS Tuning | |||
| For vehicles with Memory |
=Yes |
|||||||||
| 09 | Flex.backrest adjusting shaft | L=247MM | 1 | 01/1986 | 52101940405 | $18.23 | Shop at ECS Tuning | |||
| 09 | Flex.backrest adjusting shaft | L=215MM | 1 | 01/1986 | 52101940406 | $18.23 | Shop at ECS Tuning | |||
| 09 | Flex.shaft vertical seat adjuster rear | L=252MM | 1 | 01/1986 | 52101940407 | $18.23 | ENDED | Shop at ECS Tuning | ||
| 09 | Flex.shaft vertical seat adjuster rear | L=220MM | 1 | 01/1986 | 52101940408 | $15.86 | Shop at ECS Tuning | |||
| 10 | Voltage regulator | 3 | 01/1986 | 61311373109 | $52.48 | ENDED | Shop at ECS Tuning | |||
| 10 | Regulator horizontal seat adjustment | 1 | 01/1986 | 61311385584 | ENDED | Shop at ECS Tuning | ||||
| 10 | Volt.regul.seat inclination adjustment | 1 | 01/1986 | 61311385585 | ENDED | Shop at ECS Tuning | ||||
| 11 | Voltage regulator | 1 | 01/1986 | 61311377045 | $39.83 | ENDED | Shop at ECS Tuning | |||
| 12 | Supporting plate | 2 | 01/1986 | 52101934548 | $41.01 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 01/1986 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 14 | Hex bolt | 7/16" 20MM | 4 | 01/1986 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 15 | Shim | 2 | 01/1986 | 52101934572 | $1.88 | Shop at ECS Tuning | ||||
| 16 | Clamp | 2 | 01/1986 | 52101919476 | $0.67 | Shop at ECS Tuning | ||||
