Headrest, rear for BMW 5 Series E12 525 (1981)

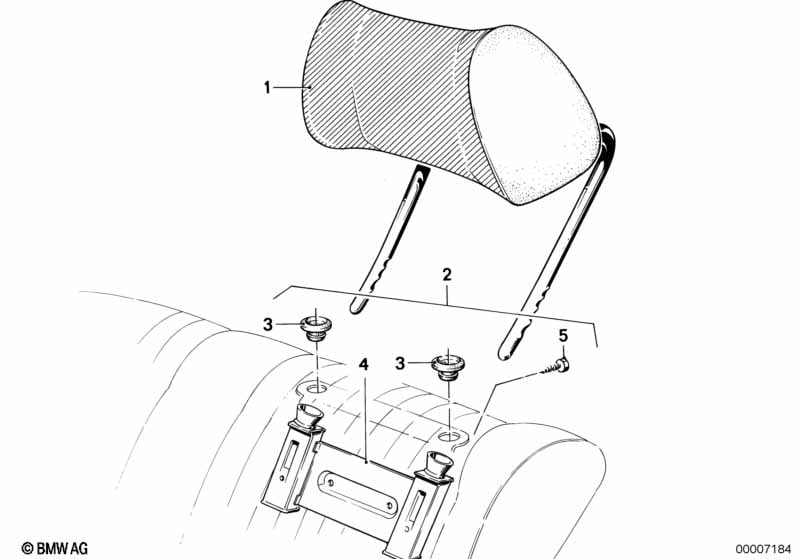

This Headrest, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headrest imitation leather | 0008 HELLGRAU | 2 | 52201855597 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | 0007 NYLONBRAUN | 2 | 52201855598 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | 0006 MARINEBLAU | 2 | 52201855599 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | 0005 SCHWARZ | 2 | 52201855600 | $126.11 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | 0048 FARNGRUEN | 2 | 52201855601 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest leather veloursred rear | 2727 | 2 | 52201866072 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest leather beige rear | 0303 | 2 | 52201866075 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest leather | 0113 SCHWARZ | 2 | 52201882922 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest leather | 0114 FARNGRUEN | 2 | 52201882923 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest leather navy blue rear | 0115 | 2 | 52201883151 | ENDED | Shop at ECS Tuning | ||||
| 01 | Head rest leather light grey rear | 0117 | 2 | 52201883152 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest leather nylon-brown rear | 0116 | 2 | 52201883153 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set mounting parts headrest rear | 1 | 52209057093 | $25.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering piece Black | 4 | 03/1975 | 52201829320 | $8.32 | Shop at ECS Tuning | ||||
| 04 | Holder | 2 | 52201828736 | $25.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring | 2 | 52201828735 | $0.33 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST6,3X19-C-Z2 | 8 | 07119916967 | $0.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
