Running meter, cloth for BMW 7 Series E32 740i (1994)

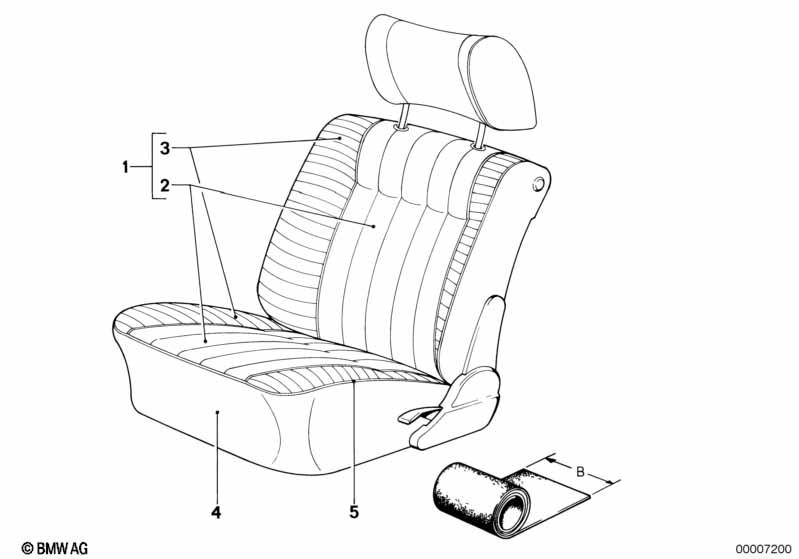

This Running meter, cloth technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO CLOTH VERSION For vehicles with National version japan |
L807A=Yes |
||||||||
| B = 1600mm | ||||||||||
| 02 | Upholstery cloth | 0422 ANTHRAZ.91 | X | 09/1990 | 51928115879 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Upholstery cloth | 0426 BRASIL | X | 09/1990 | 51928136917 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth | 0423 SILBERGRAU | X | 09/1990 | 51928136918 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Upholstery cloth | 0424 ULTRAMARIN | X | 09/1990 | 51928136919 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Upholstery cloth | 0425 PERGAMENT | X | 09/1990 | 51928136920 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Upholstery cloth | 0422 ANTHRAZ.91 | X | 09/1990 | 51928115939 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Upholstery cloth | 0423 SILBERGRAU | X | 09/1990 | 51928136910 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Upholstery cloth | 0424 ULTRAMARIN | X | 09/1990 | 51928136911 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Upholstery cloth | 0425 PERGAMENT | X | 09/1990 | 51928136912 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Upholstery cloth | 0426 BRASIL | X | 09/1990 | 51928136913 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Upholstery cloth | 0422 ANTHRAZ.91 | X | 09/1990 | 51928115939 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Upholstery cloth | 0423 SILBERGRAU | X | 09/1990 | 51928136910 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Upholstery cloth | 0424 ULTRAMARIN | X | 09/1990 | 51928136911 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Upholstery cloth | 0425 PERGAMENT | X | 09/1990 | 51928136912 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Upholstery cloth | 0426 BRASIL | X | 09/1990 | 51928136913 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 05 | Synthetic strip | 0423 SILBERGRAU | X | 09/1990 | 51928115954 | $2.79 | ENDED | Shop at ECS Tuning | ||
| 05 | Synthetic strip | 0424 ULTRAMARIN | X | 09/1990 | 51928115955 | $2.79 | ENDED | Shop at ECS Tuning | ||
| 05 | Synthetic strip | 0425 PERGAMENT | X | 09/1990 | 51928115956 | $2.79 | ENDED | Shop at ECS Tuning | ||
| 05 | Synthetic strip | 0426 BRASIL | X | 09/1990 | 51928115957 | $2.79 | ENDED | Shop at ECS Tuning | ||
| 05 | Synthetic strip | 0422ANTHRAZIT91 | X | 09/1990 | 51928137764 | $2.82 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
