Seat spring frame/pad/catch sup. rear for BMW 7 Series E23 728i (1982)

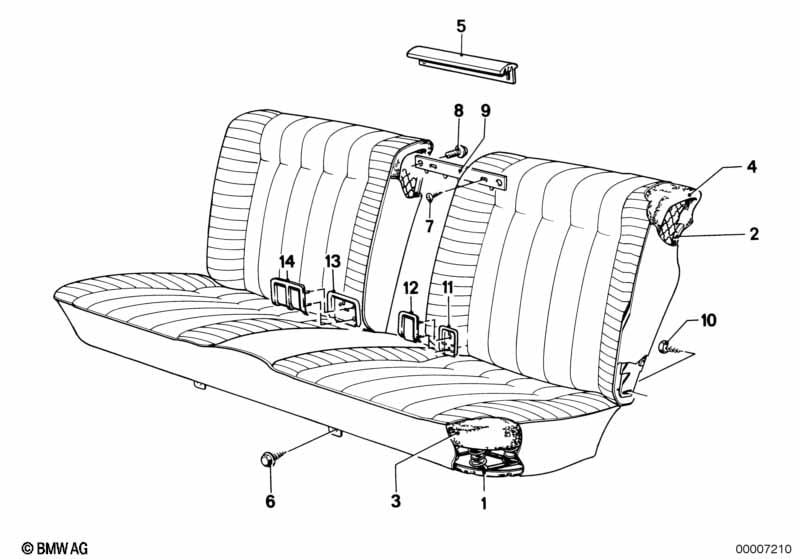

This Seat spring frame/pad/catch sup. rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 700-701-702-703-704/721-722- 723-724-725 |
|||||||||
| 01 | Spring frame seat interferen.suppressor | 1 | 52201866820 | ENDED | Shop at ECS Tuning | |||||
| 02 | Spring frame backrest rear | 1 | 52201852375 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pad seat rear | 1 | 52201852377 | ENDED | Shop at ECS Tuning | |||||
| 04 | Pad seat backrest rear | 1 | 09/1982 | 52201852381 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X25-C-Z2 | 2 | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex head screw | ST6,3X16-C-ZN | 2 | 07119916822 | $0.20 | Shop at ECS Tuning | ||||
