Rear panel/folding table for BMW 7 Series E32 730iL (1992)

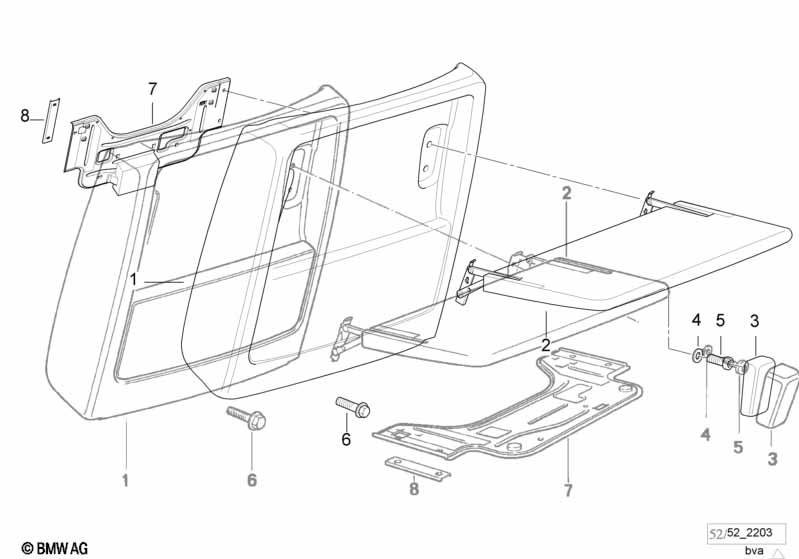

This Rear panel/folding table technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 Ausführung 751 Ausführung 752 |
|||||||||
| ONLY APPLIES TO ARMREST FRONT | ||||||||||
| 03 | Covering left | 0226/0232 SCHWA | 2 | 52108127079 | $7.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | 0226/0232 SCHWA | 2 | 52108127080 | $7.70 | Shop at ECS Tuning | ||||
| 04 | Washer | 10X5,3X1-200 HV | 8 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M5 X 16 | 8 | 61611382282 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 06 | Lock bolt | 8 | 51321928275 | $0.41 | Shop at ECS Tuning | |||||
| 07 | Holder | 2 | 52108101067 | $196.42 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reinforcement | 4 | 52108113854 | $7.06 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Rear panel/folding table?
- This technical diagram illustrates the Rear panel/folding table within the Seats group for the 7 Series E32 730iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Covering left (Part #52108127079).
- Which models use the hardware listed in this Rear panel/folding table?
- The hardware and components featured in the Rear panel/folding table are specific to the 7 Series E32 730iL produced during 1992. These technical specifications ensure that parts like the Covering left (52108127079) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear panel/folding table assembly?
- Each item in the Rear panel/folding table corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Covering left by locating its position on the schematic, which then links to the official BMW part number 52108127079 for the Seats section.
