Seat cover front for BMW 3 Series E30 325e (1987)

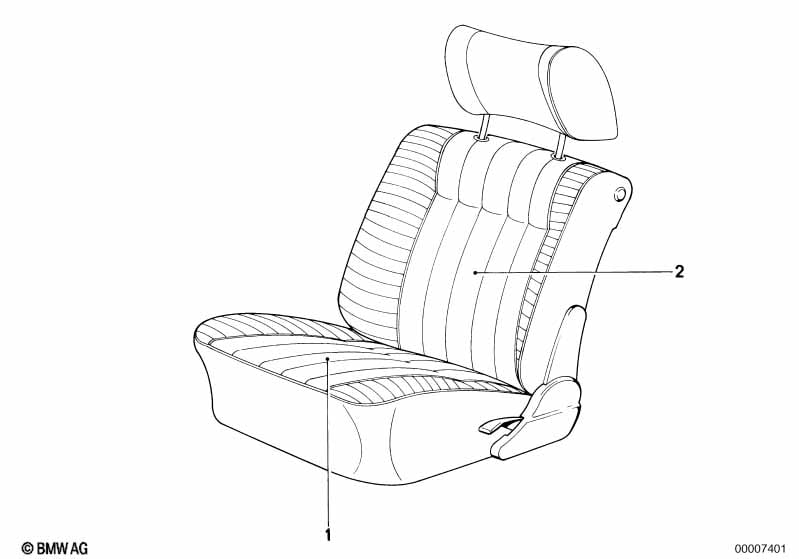

This Seat cover front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 310 For vehicles with National version japan |
L807A=Yes |
||||||||
| 02 | Cover backrest cloth | 0211 ANTHRAZIT | 2 | 09/1985 | 52101941908 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0212 PACIFIC | 2 | 09/1985 | 52101941909 | $136.15 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0213 NUTRIA | 2 | 09/1985 | 52101941910 | $136.15 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0214 PERLBEIGE | 2 | 09/1985 | 52101941911 | $204.46 | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0215 PINIENGR. | 2 | 09/1985 | 52101941912 | $136.15 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, imitation leather | 0166 SCHWARZ | 2 | 09/1985 | 52101941918 | $204.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, imitation leather | 0167 PACIFIC | 2 | 09/1985 | 52101941919 | $73.32 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, imitation leather | 0156 PERLBEIGE | 2 | 09/1985 | 52101941920 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0203 SCHWARZ | 2 | 09/1985 | 52101941926 | $378.32 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0204 PACIFIC | 2 | 09/1985 | 52101941927 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0205 NUTRIA | 2 | 09/1985 | 52101941928 | $378.32 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0206 PERLBEIGE | 2 | 09/1985 | 52101941929 | $566.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0208 TAURUSROT | 2 | 09/1985 | 52101941930 | $370.51 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0256 CARDIN.ROT | 2 | 09/1985 | 52101966680 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
