Headrest front,adjustable for BMW 3 Series E30 318i (1985)

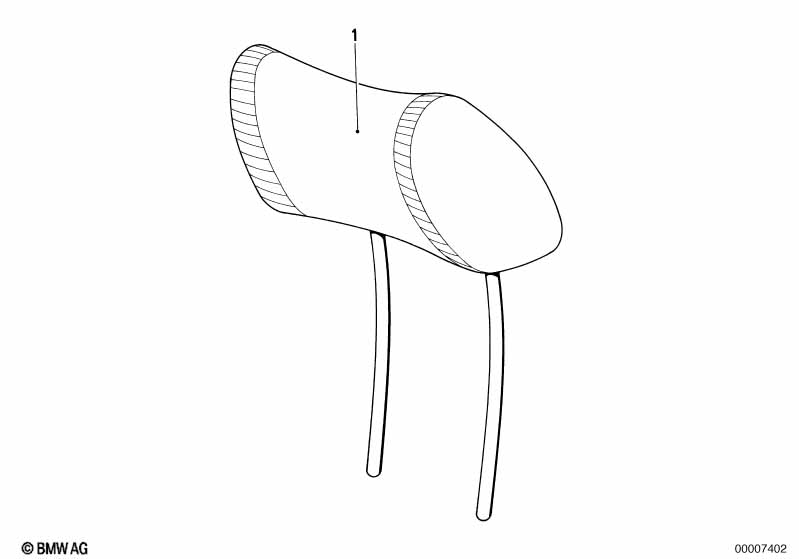

This Headrest front,adjustable technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan 0269/0274/0373 anthrazit, 0270/0275/0374 silber, 0271/0276/0375 indigo |
L807A=Yes |
|||||||||
| 01 | Headrest imitation leather | 0166 SCHWARZ | 2 | 09/1985 | 52101913640 | $95.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0167 PACIFIC | 2 | 09/1985 | 52101913641 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0156 PERLBEIGE | 2 | 09/1985 | 52101913643 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0208 TAURUSROT | 2 | 09/1985 | 52101931834 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0203/0402SCHWAR | 2 | 09/1985 | 52101936278 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0204/0285PACIFI | 2 | 09/1985 | 52101936279 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0205/0286NUTRIA | 2 | 09/1985 | 52101936280 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0206/0287PERLBE | 2 | 09/1985 | 52101936281 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0211 ANTHRAZIT | 2 | 09/1985 | 52101942106 | $95.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0212 PACIFIC | 2 | 09/1985 | 52101942107 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0213 NUTRIA | 2 | 09/1985 | 52101942108 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0214 PERLBEIGE | 2 | 09/1985 | 52101942109 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0215 PINIENGR. | 2 | 09/1985 | 52101942110 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0239/0256 C.ROT | 2 | 09/1985 | 52101943839 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | 0192 NATUR | 2 | 09/1985 | 52101979458 | $95.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0292/0403SILBER | 2 | 09/1985 | 52101979459 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0269 ANTHRAZIT | 2 | 09/1985 | 52101979461 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0270 SILBER | 2 | 09/1985 | 52101979462 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0271 INDIGO | 2 | 09/1985 | 52101979463 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0272/0277 HAVAN | 2 | 09/1985 | 52101979464 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0273/0278 NATUR | 2 | 09/1985 | 52101979465 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0293/0404INDIGO | 2 | 09/1985 | 52101979472 | $156.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0295 NATUR | 2 | 09/1985 | 52101979473 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0296 CARDIN.ROT | 2 | 09/1985 | 52101979474 | $188.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0324 KARMES.ROT | 2 | 09/1985 | 52108112340 | $156.24 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
