BMW sports seat for BMW 7 Series E23 733i (1979)

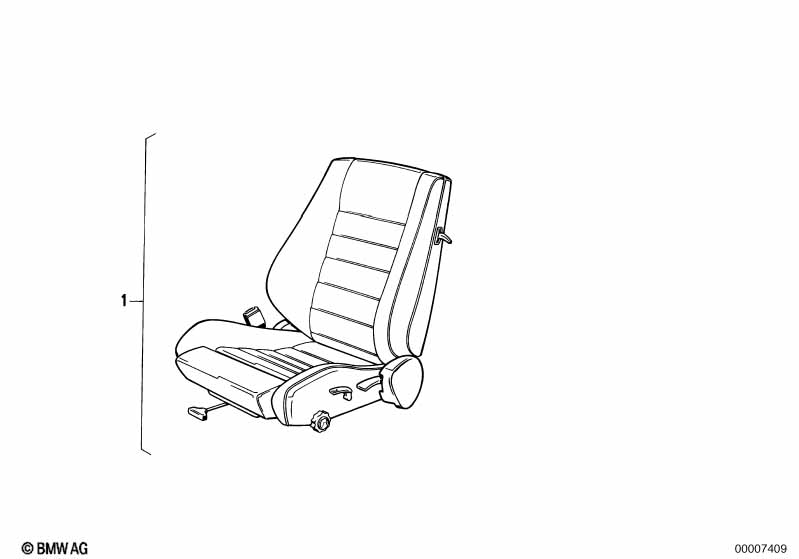

This BMW sports seat technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Version 723-724-725 | ||||||||||
| 01 | Seat cloth left with adjuster | 0096 ANTHRACITE | 1 | 52101945241 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cloth left with adjuster | 0097 PACIFIC | 1 | 52101945243 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cloth left with adjuster | 0173 NUTRIA | 1 | 52101945245 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cloth left with adjuster | 0073 PINE GREEN | 1 | 52101945249 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cloth right with adjuster | 0096 ANTHRAZIT | 1 | 52101945230 | $672.39 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Seat cloth right with adjuster | 0097 PACIFIC | 1 | 52101945232 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Seat cloth right with adjuster | 0173 NUTRIA | 1 | 52101945234 | $700.29 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Seat cloth right with adjuster | 0174 PERLBEIGE | 1 | 52101945236 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Seat cloth right with adjuster | 0073 PINIENGR. | 1 | 52101945238 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Seat cloth left with adjuster | 0174 PEARL BEIG | 1 | 52101945247 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M10X32 | 4 | 07119915189 | $0.82 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| Version 723-724 | ||||||||||
| 01 | Seat leather right with adjuster | 0159 SCHWARZ | 1 | 09/1984 | 52101927568 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather right with adjuster | 0160 PACIFIC | 1 | 09/1984 | 52101927570 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather right with adjuster | 0157 NUTRIA | 1 | 09/1984 | 52101927572 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather right with adjuster | 0158 PERLBEIGE | 1 | 09/1984 | 52101927574 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather right with adjuster | 0163 BERB.BEIGE | 1 | 09/1984 | 52101927576 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather right with adjuster | 0162 CHERRY | 1 | 09/1984 | 52101927578 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0159 BLACK | 1 | 09/1984 | 52101927581 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0160 PACIFIC | 1 | 09/1984 | 52101927583 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0157 NUTRIA | 1 | 09/1984 | 52101927585 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0158 PEARL BEIG | 1 | 09/1984 | 52101927587 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0163 BERB.BEIGE | 1 | 09/1984 | 52101927589 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather left with adjuster | 0162 CHERRY | 1 | 09/1984 | 52101927591 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather buffalo right with adjuster | 0180 ANTHRAZIT | 1 | 09/1984 | 52101945278 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
| 01 | Seat leather buffalo right with adjuster | 0181 NUTRIA | 1 | 09/1984 | 52101945280 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SAFETY BELT FRONT HEADREST |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
