BMW sports seat unlocking for BMW 3 Series E30 M3 (1990)

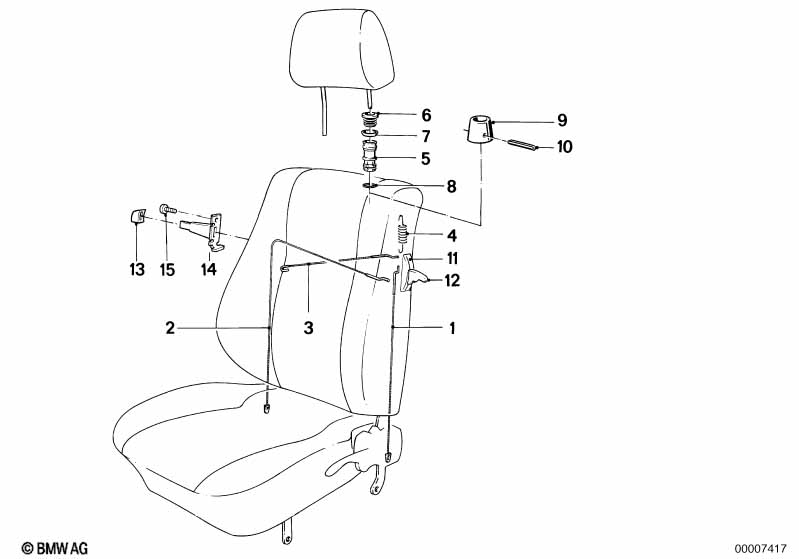

This BMW sports seat unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Rope | 465MM | 2 | 52101916611 | $5.23 | Shop at ECS Tuning | ||||
| For vehicles with National version japan ONLY APPLIES TO DRIVER'S SIDE |
L807A=Yes |
|||||||||
| 02 | Rope | 820MM | 1 | 52101916612 | $5.23 | Shop at ECS Tuning | ||||
| For vehicles with National version japan ONLY APPLIES TO CO-DRIVERS SIDE |
L807A=Yes |
|||||||||
| 03 | Rope | 315MM | 1 | 52101916613 | $4.71 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Spring | 2 | 52101916606 | $5.58 | Shop at ECS Tuning | |||||
| 05 | Guide bush | 4 | 06/1985 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 06 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 07 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 08 | Spring washer | 4 | 06/1985 | 52101928809 | $0.23 | Shop at ECS Tuning | ||||
| 11 | Cover | 3 | 52101922144 | $0.95 | Shop at ECS Tuning | |||||
| 12 | Handle outer left | 1 | 52101916635 | $5.49 | Shop at ECS Tuning | |||||
| 12 | Handle outer right | 1 | 52101916636 | $5.26 | Shop at ECS Tuning | |||||
| 13 | Handle | 1 | 52101904964 | $1.48 | Shop at ECS Tuning | |||||
| 14 | Lever | 1 | 52101923899 | $3.83 | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | M4X10-4.8-H | 1 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
