Seat cover rear for BMW 3 Series E21 320i (1977)

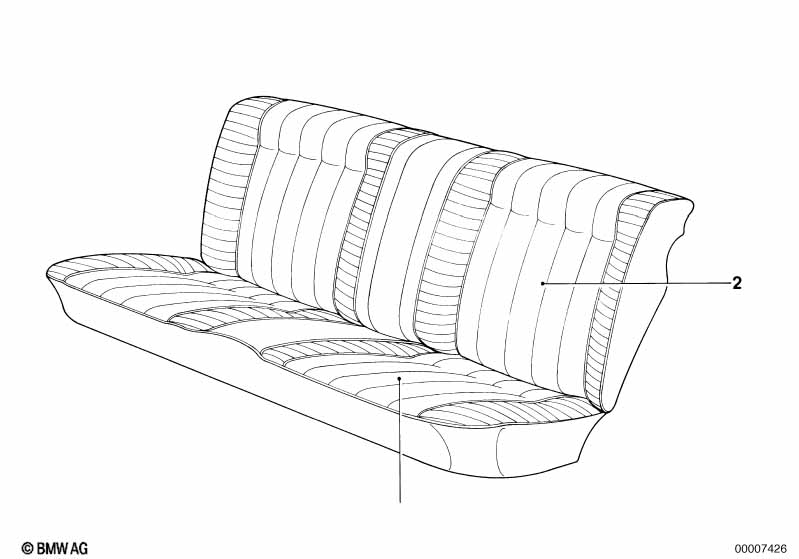

This Seat cover rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 300-305 | |||||||||
| 01 | Seat cover vinyl light-grey rear | 0008 | 1 | 09/1977 | 52201844277 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl nylon-brown rear | 0007 | 1 | 09/1977 | 52201844278 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Seat cover rear?
- This technical diagram illustrates the Seat cover rear within the Seats group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Seat cover vinyl light-grey rear (Part #52201844277).
- Which models use the hardware listed in this Seat cover rear?
- The hardware and components featured in the Seat cover rear are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Seat cover vinyl light-grey rear (52201844277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat cover rear assembly?
- Each item in the Seat cover rear corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Seat cover vinyl light-grey rear by locating its position on the schematic, which then links to the official BMW part number 52201844277 for the Seats section.
