Armrest front for BMW 7 Series E32 740i (1994)

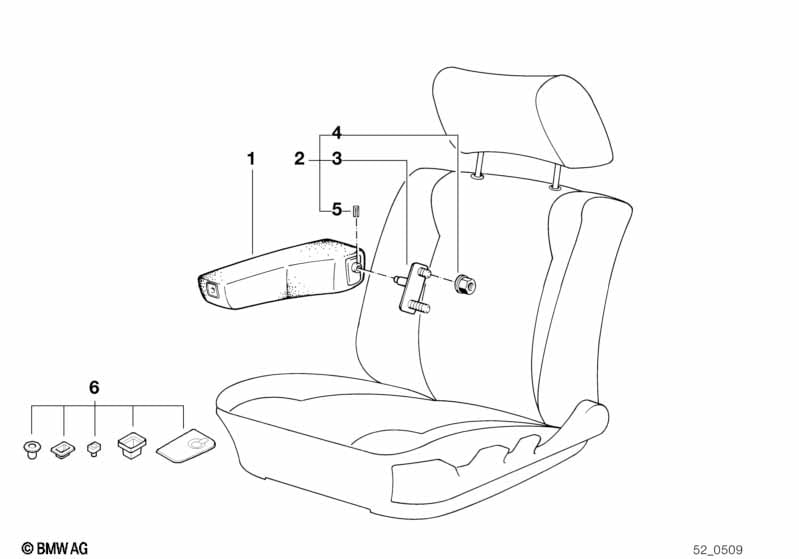

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UPHOLSTERY LEATHER WALKNAPPA 0226,0232=schwarz 0484,0485=silber-grau 0436/0438=silber-grau hell 0433/0439=ultramarin 0434/0440=pergament 0437=pergament hell 0435/0441=brasil |
||||||||||
| 01 | Armrest leather left | SCHWARZ | 1 | 52101957665 | $488.81 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather right | SCHWARZ | 1 | 52101957666 | $488.81 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather right | SILBERGRAU-HELL | 1 | 09/1990 | 52108140460 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | SILBERGRAU-HELL | 1 | 09/1990 | 52108140461 | $518.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather right | ULTRAMARIN | 1 | 09/1990 | 52108140462 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | ULTRAMARIN | 1 | 09/1990 | 52108140463 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather right | PERGAMENT | 1 | 09/1990 | 52108140464 | $518.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | PERGAMENT | 1 | 09/1990 | 52108140465 | $525.63 | +core | Shop at ECS Tuning | ||
| 01 | Armrest leather right | PERGAMENT-HELL | 1 | 09/1990 | 52108140466 | $574.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | PERGAMENT-HELL | 1 | 09/1990 | 52108140467 | $556.88 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | SILBERGRAU | 1 | 09/1991 | 52108160035 | $574.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather right | SILBERGRAU | 1 | 09/1991 | 52108160036 | $574.74 | ENDED | Shop at ECS Tuning | ||
| INDIVIDUAL SERIES 93/94 | ||||||||||
| 01 | Armrest leather left | CHAMPAGNER | 1 | 52102134443 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather right | CHAMPAGNER | 1 | 52102134444 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Armrest leather left | MEXICOGRUEN | 1 | 52102136777 | ENDED | Shop at ECS Tuning | ||||
| 01 | Armrest leather right | MEXICOGRUEN | 1 | 52102136778 | ENDED | Shop at ECS Tuning | ||||
| 0422/0444/0446 anthrazit 91, 0423/0447 silber-grau, 0424/0448 ultramarin, 0425/0449 pergament, 0426/0450/0445 brasil |
||||||||||
| 01 | Armrest cloth left | SILBERGRAU | 1 | 09/1990 | 52108140503 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth right | SILBERGRAU | 1 | 09/1990 | 52108140504 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth left | ULTRAMARIN | 1 | 09/1990 | 52108140505 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth right | ULTRAMARIN | 1 | 09/1990 | 52108140506 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth left | PERGAMENT | 1 | 09/1990 | 52108140507 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth right | PERGAMENT | 1 | 09/1990 | 52108140508 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth left | ANTHRAZIT 91 | 1 | 09/1990 | 52108145373 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth right | ANTHRAZIT 91 | 1 | 09/1990 | 52108145374 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0240,0297,0301,0308,0342,0371 siam-grau 0241,0298,0302,0309,0343,0372 havanna 0180,0442,0459 anthrazit 0362,0443,0460 brasil |
||||||||||
| 01 | Armrest leather right | ANTHRAZIT | 1 | 09/1990 | 52108140470 | $460.91 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather left | ANTHRAZIT | 1 | 09/1990 | 52108140471 | $407.90 | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 01 | Armrest leather left | 0323 KARMES.ROT | 1 | 52108113585 | $341.50 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Armrest leather right | 0323 KARMES.ROT | 1 | 52108113586 | $341.50 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Console | D=12 | 1 | 52101962664 | $17.82 | ENDED | Shop at ECS Tuning | |||
| -- | Console | D=14 | 1 | 52108101960 | $19.22 | Shop at ECS Tuning | ||||
| 02 | Set mounting parts armrest front | D=14 | 2 | 09/1991 | 52109061257 | $19.50 | ENDED | Shop at ECS Tuning | ||
| 03 | Console | D=14 | 2 | 09/1987 | 52108101960 | $19.22 | Shop at ECS Tuning | |||
| 04 | Hex nut with plate | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Roll pin | 5X24 | 2 | 07119941226 | $0.19 | ENDED | Shop at ECS Tuning | |||
| 05 | Roll pin | 6X22 | 2 | 07119941231 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Set of repair parts | SCHWARZ | 1 | 52102902040 | $15.77 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
