Seat, front, upholstery and cover for BMW 3 Series E36 320i (1995)

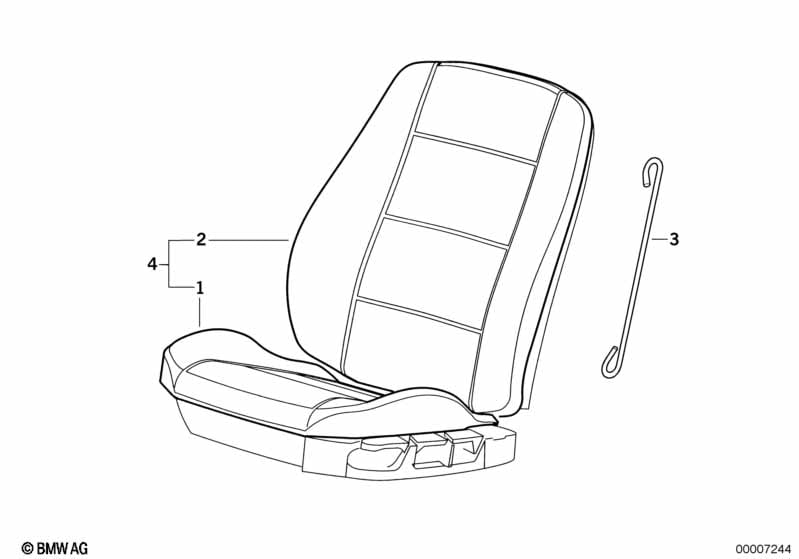

This Seat, front, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Seat, front, upholstery and cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Refer to "Help - abbreviations" in EPC
01 Seat cover vinyl 0521 BEIGE 2 09/1993 52108166196 $207.32 ENDED, +core Shop at ECS Tuning
UPHOLSTERY LEATHER MONTANA
01 Seat cover leather 0514 SCHWARZ 2 52108166063 $456.07 +core Shop at ECS Tuning
01 Seat cover leather 0515 BEIGE 2 52108166064 $456.07 ENDED Shop at ECS Tuning
01 Seat cover leather 0516 SAFRANGELB 2 52108166065 $448.63 Shop at ECS Tuning
01 Seat cover leather 0517 BLAUVIOL. 2 52108166066 $456.07 ENDED, +core Shop at ECS Tuning
01 Seat cover leather 0595 HELLGRAU 2 52108180140 $456.07 ENDED, +core Shop at ECS Tuning
01 Seat cover leather P8TD TANINROT 2 52108231479 $528.98 ENDED Shop at ECS Tuning
01 Seat cover leather P8ST STAHLBLAU 2 52108256741 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, flat "Clover"
D6=Yes
01 Seat cover cloth D6AT ANTHRAZIT 2 09/1994 52108201732 $136.15 Shop at ECS Tuning
01 Seat cover cloth D6TT GRAU 2 09/1994 52108201733 $136.15 ENDED, +core Shop at ECS Tuning
01 Seat cover cloth D6GD KLASS.ROT 2 09/1994 52108201734 $136.15 ENDED, +core Shop at ECS Tuning
01 Seat cover cloth D6TK TUERKIS 2 09/1994 52108201735 $136.15 ENDED, +core Shop at ECS Tuning
02 Cover backrest, imitation leather K1SW SCHWARZ 2 09/1994 52108201700 $251.47 ENDED Shop at ECS Tuning
02 Cover backrest, imitation leather K1SN BEIGE 2 09/1994 52108201701 $251.47 ENDED, +core Shop at ECS Tuning
UPHOLSTERY LEATHER MONTANA
02 Cover backrest, leather P8SW SCHWARZ 2 09/1994 52108201694 $553.20 Shop at ECS Tuning
02 Cover backrest, leather P8TH HELLGRAU 2 09/1994 52108201695 $553.20 ENDED Shop at ECS Tuning
02 Cover backrest, leather P8SN BEIGE 2 09/1994 52108201696 $553.20 ENDED Shop at ECS Tuning
02 Cover backrest, leather P8MA BLAUVIOLET 2 09/1994 52108201697 $451.98 ENDED Shop at ECS Tuning
02 Cover backrest, leather P8SG SAFRANGELB 2 09/1994 52108201698 $553.20 ENDED Shop at ECS Tuning
02 Cover backrest, leather P8TD TANINROT 2 09/1994 52108231481 $528.98 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, flat "Clover"
D6=Yes
02 Cover backrest cloth D6AT ANTHRAZIT 2 09/1994 52108201737 $136.15 ENDED Shop at ECS Tuning
02 Cover backrest cloth D6TT GRAU 2 09/1994 52108201738 $136.15 ENDED, +core Shop at ECS Tuning
02 Cover backrest cloth D6GD KLASS.ROT 2 09/1994 52108201739 $136.15 ENDED, +core Shop at ECS Tuning
02 Cover backrest cloth D6TK TUERKIS 2 09/1994 52108201740 $136.15 ENDED, +core Shop at ECS Tuning
03 Wire-strap L=1800MM X 52208129296 $1.14 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
