Seat, front, uphlstry, cover, Sport seat for BMW 3 Series E36 318is (1995)

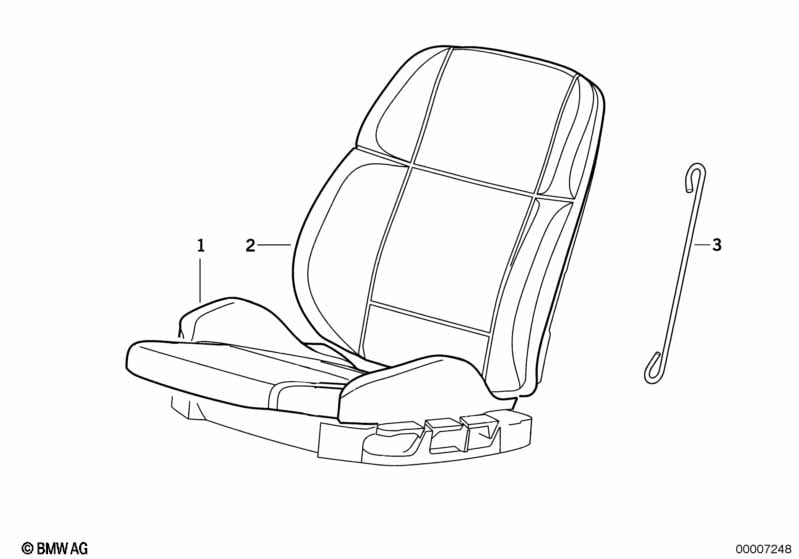

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with Nappa Casual leather |
P7=Yes |
|||||||||
| 01 | Seat cover leather | 0518 SCHWARZ | 2 | 09/1993 | 52108166374 | $456.07 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0519 HELLGRAU | 2 | 09/1993 | 52108166375 | $456.07 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0520 KLASSI.ROT | 2 | 09/1993 | 52108166376 | $448.63 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0620 BEIGE | 2 | 09/1993 | 52108180322 | $456.07 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0645 SAFRANGELB | 2 | 09/1993 | 52108195429 | $448.63 | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0646 BLAUVIOLET | 2 | 09/1993 | 52108195430 | $448.63 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 01 | Cloth/leather seat cover | 0511 ANTHRAZIT | 2 | 09/1993 | 52108166370 | $352.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | 0512 TUERKIS | 2 | 09/1993 | 52108166371 | $352.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | 0513 KLASSI.ROT | 2 | 09/1993 | 52108166372 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Seat cover cloth | D6AT ANTHRAZIT | 2 | 09/1994 | 52108201908 | $207.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TT GRAU | 2 | 09/1994 | 52108201909 | $179.68 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6GD KLASS.ROT | 2 | 09/1994 | 52108201910 | $179.68 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TK TUERKIS | 2 | 09/1994 | 52108201911 | $179.68 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 02 | Cover backrest cloth | C1AT ANTHRAZIT | 2 | 09/1994 | 52108201867 | $304.67 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | C1GD KLASS.ROT | 2 | 09/1994 | 52108201868 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | C1TK TUERKIS | 2 | 09/1994 | 52108201869 | $304.67 | ENDED | Shop at ECS Tuning | ||
| 03 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
