Seat, rear, uphlstry/cover, load-through for BMW 3 Series E36 320i (1995)

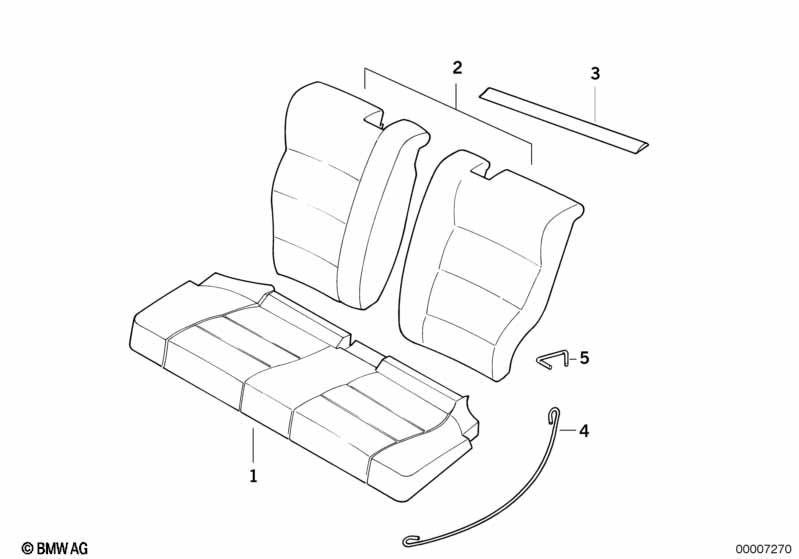

This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Refer to "Help - abbreviations" in EPC Refer to "Help - abbreviations" in EPC Refer to "Help - abbreviations" in EPC |
|||||||||
| CLOTH VERSION FLOCK "PIQUE" | ||||||||||
| 01 | Seat cover cloth | 0503 ANTHRAZIT | 1 | 09/1993 | 52208188229 | $227.66 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0504 GRAU | 1 | 09/1993 | 52208188230 | $354.25 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0505 BEIGE | 1 | 09/1993 | 52208188231 | $364.83 | ENDED, +core | Shop at ECS Tuning | ||
| CLOTH VERSION "VELOURS" | ||||||||||
| 01 | Seat cover cloth | 0546 ANTHRAZIT | 1 | 09/1993 | 52208188278 | $293.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0547 HELLGRAU | 1 | 09/1993 | 52208188279 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0548 BEIGE HELL | 1 | 09/1993 | 52208188280 | $293.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208188281 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER MONTANA MODEL SOFT |
||||||||||
| 01 | Seat cover leather | 0514 SCHWARZ | 1 | 09/1993 | 52208188308 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0515 BEIGE | 1 | 09/1993 | 52208188309 | $854.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0517 BLAUVIOLET | 1 | 09/1993 | 52208188310 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0516 SAFRANGELB | 1 | 09/1993 | 52208188311 | $854.20 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0595 HELLGRAU | 1 | 09/1993 | 52208188312 | $854.20 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER MONTANA MODEL CASUAL |
||||||||||
| 01 | Seat cover leather | 0518 SCHWARZ | 1 | 09/1993 | 52208188324 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0519 HELLGRAU | 1 | 09/1993 | 52208188325 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0520 KLASS.ROT | 1 | 09/1993 | 52208188326 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0620 BEIGE | 1 | 09/1993 | 52208188327 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY VINYL | ||||||||||
| 01 | Seat cover vinyl | 0521 BEIGE | 1 | 09/1993 | 52208188232 | $227.66 | ENDED, +core | Shop at ECS Tuning | ||
| CLOTH VERSION WITH LEATHER | ||||||||||
| 01 | Seat cover cloth | 0511 ANTHRAZIT | 1 | 09/1993 | 52208188294 | $440.82 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0513 KLASS.ROT | 1 | 09/1993 | 52208188295 | $440.82 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0512 TUERKIS | 1 | 09/1993 | 52208188296 | $440.82 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Seat cover cloth | D6AT ANTHRAZIT | 1 | 09/1994 | 52208204130 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TT GRAU | 1 | 09/1994 | 52208204131 | $293.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6GD KLASS.ROT | 1 | 09/1994 | 52208204132 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TK TUERKIS | 1 | 09/1994 | 52208204133 | $293.51 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION FLOCK "PIQUE" | ||||||||||
| 02 | Cover backrest cloth left | 0503 ANTHRAZIT | 1 | 09/1993 | 52208188373 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0503 ANTHRAZIT | 1 | 09/1993 | 52208188374 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0504 GRAU | 1 | 09/1993 | 52208188375 | $158.85 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0504 GRAU | 1 | 09/1993 | 52208188376 | $158.85 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0505 BEIGE | 1 | 09/1993 | 52208188377 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0505 BEIGE | 1 | 09/1993 | 52208188378 | $116.06 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION FLOCK "VELOURS" | ||||||||||
| 02 | Cover backrest cloth left | 0546 ANTHRAZIT | 1 | 09/1993 | 52208180797 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0546 ANTHRAZIT | 1 | 09/1993 | 52208180798 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0547 GRAU | 1 | 09/1993 | 52208180799 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0547 GRAU | 1 | 09/1993 | 52208180800 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0548 HELLBEIGE | 1 | 09/1993 | 52208180801 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0548 HELLBEIGE | 1 | 09/1993 | 52208180802 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208180803 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208180804 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY VINYL | ||||||||||
| 02 | Cover backrest vinyl left | 0477 SCHWARZ | 1 | 52208130285 | $109.93 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl right | 0477 SCHWARZ | 1 | 52208130286 | $109.93 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl left | 0521 BEIGE | 1 | 09/1993 | 52208180783 | $158.85 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest vinyl right | 0521 BEIGE | 1 | 09/1993 | 52208180784 | $158.85 | ENDED, +core | Shop at ECS Tuning | ||
| CLOTH VERSION WITH LEATHER | ||||||||||
| 02 | Cover backrest cloth left | 0511 ANTHRAZIT | 1 | 09/1993 | 52208180807 | $281.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0511 ANTHRAZIT | 1 | 09/1993 | 52208180808 | $281.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0513 KLASS.ROT | 1 | 09/1993 | 52208180809 | $281.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0513 KLASS.ROT | 1 | 09/1993 | 52208180810 | $281.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0512 TUERKIS | 1 | 09/1993 | 52208180811 | $281.23 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | 0512 TUERKIS | 1 | 09/1993 | 52208180812 | $281.23 | ENDED, +core | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER MONTANA | ||||||||||
| 02 | Cover backrest leather left | 0514,0518 SCHW. | 1 | 09/1993 | 52208180815 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0514,0518 SCHW. | 1 | 09/1993 | 52208180816 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0519,0595 GRAU | 1 | 09/1993 | 52208180817 | $347.49 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0519,0595 GRAU | 1 | 09/1993 | 52208180818 | $347.49 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0520 KLASS.ROT | 1 | 09/1993 | 52208180819 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0520 KLASS.ROT | 1 | 09/1993 | 52208180820 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0515,0620 BEIGE | 1 | 09/1993 | 52208180821 | $347.49 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0515,0620 BEIGE | 1 | 09/1993 | 52208180822 | $347.49 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0517 BLAUVIOLET | 1 | 09/1993 | 52208180829 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0517 BLAUVIOLET | 1 | 09/1993 | 52208180830 | $619.38 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0516 SAFRANGELB | 1 | 09/1993 | 52208180831 | $619.38 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest leather right | 0516 SAFRANGELB | 1 | 09/1993 | 52208180832 | $619.38 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric, flat "Clover" CLOTH VERSION, FLAT TEXTILE KLEE |
D6=Yes |
|||||||||
| 02 | Cover backrest cloth left | D6AT ANTHRAZIT | 1 | 09/1994 | 52208203629 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | D6AT ANTHRAZIT | 1 | 09/1994 | 52208203630 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | D6TT GRAU | 1 | 09/1994 | 52208203631 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | D6TT GRAU | 1 | 09/1994 | 52208203632 | $158.85 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | D6GD KLASS.ROT | 1 | 09/1994 | 52208203633 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | D6GD KLASS.ROT | 1 | 09/1994 | 52208203634 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | D6TK TUERKIS | 1 | 09/1994 | 52208203635 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth right | D6TK TUERKIS | 1 | 09/1994 | 52208203636 | $116.06 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Cover | 2 | 52208153256 | $17.73 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
