Seat, rear, backrest trim covers for BMW 3 Series E36 318i (1998)

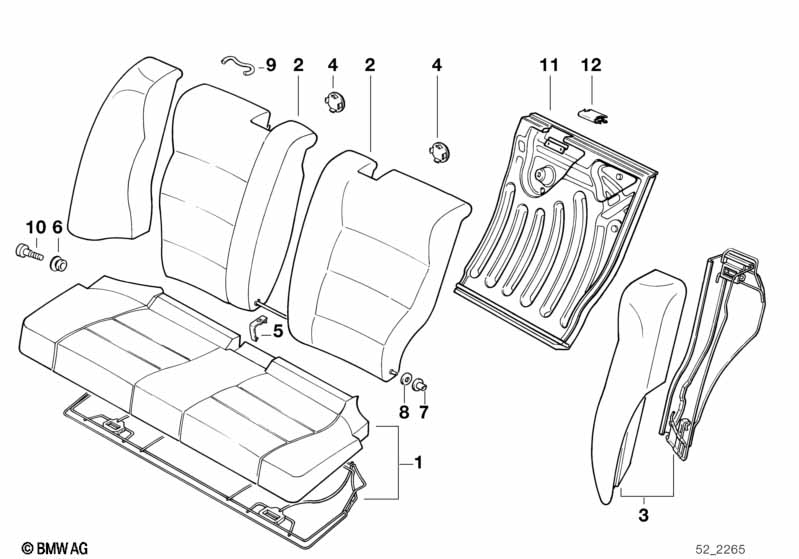

This Seat, rear, backrest trim covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Cover | 2 | 52208153249 | $1.82 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 52208153009 | $2.20 | Shop at ECS Tuning | |||||
| 06 | Bushing | 2 | 52208144415 | $1.23 | Shop at ECS Tuning | |||||
| 07 | Bushing | 2 | 52208144413 | $1.23 | Shop at ECS Tuning | |||||
| 08 | Shim | 2 | 52208144414 | $0.32 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | ISA M8X17 | 2 | 52208144412 | $1.43 | Shop at ECS Tuning | ||||
| 11 | Trim backrest, left | 1 | 52208130143 | $246.43 | +core | Shop at ECS Tuning | ||||
| 11 | Trim backrest, right | 1 | 52208130144 | $246.43 | +core | Shop at ECS Tuning | ||||
| 12 | Clamp | SILBER | 5 | 52208132174 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Clamp | GELB | 9 | 52208132176 | $0.18 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
