Front seat for BMW 5 Series E34 525i (1990)

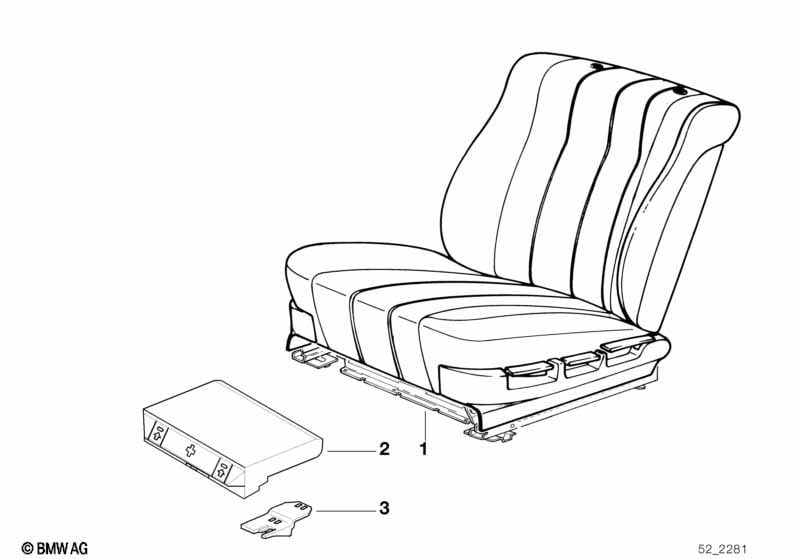

This Front seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Seats cannot be ordered as complete units! The seat must be assembled from individual parts using the EPC data. |
|||||||||
| 01 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 02 | First aid kit | 1 | 52101928751 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bracket first aid box | 1 | 52101945440 | $2.61 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
