Front seat pan/pad for BMW 3 Series E36 325tds (1998)

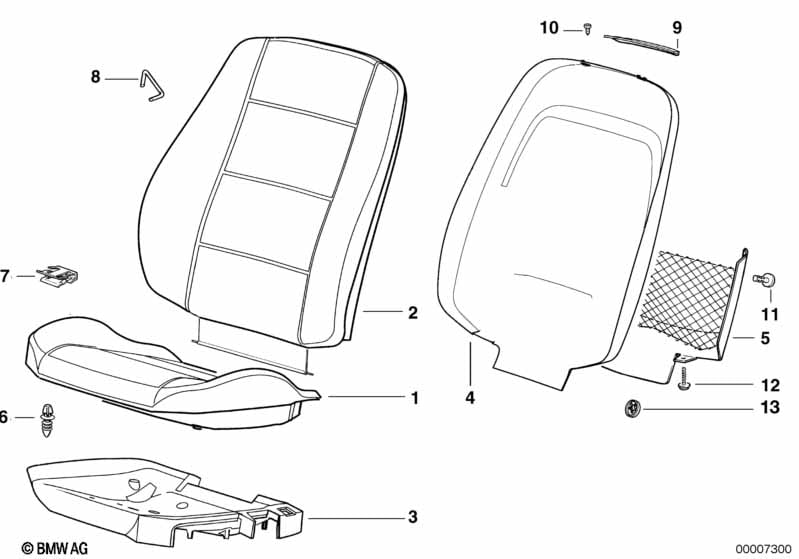

This Front seat pan/pad technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Front seat pan/pad
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pad seat front 2 52101977959 $113.89 ENDED Shop at ECS Tuning
01 Pad, lower seat, front 2 52108187247 $53.00 ENDED Shop at ECS Tuning
02 Pad seat backrest front 2 09/1994 52108146321 $125.27 ENDED Shop at ECS Tuning
03 Seat pan left SCHWARZ 1 52108130667 $75.73 ENDED Shop at ECS Tuning
03 Seat pan, right SCHWARZ 1 52108130668 $75.73 ENDED Shop at ECS Tuning
03 Seat pan left GRAU 1 09/1993 52108166181 $75.73 ENDED Shop at ECS Tuning
03 Seat pan, right GRAU 1 09/1993 52108166182 $75.73 Shop at ECS Tuning
03 Seat pan left BEIGE 1 09/1993 52108166183 $75.73 ENDED Shop at ECS Tuning
03 Seat pan, right BEIGE 1 09/1993 52108166184 $75.73 ENDED Shop at ECS Tuning
03 Seat pan left TUERKIS 1 09/1993 52108166185 $58.59 ENDED Shop at ECS Tuning
03 Seat pan, right TUERKIS 1 09/1993 52108166186 $58.59 ENDED Shop at ECS Tuning
03 Seat pan left KLASSISCHROT 1 09/1993 52108166187 $58.59 ENDED Shop at ECS Tuning
03 Seat pan, right KLASSISCHROT 1 09/1993 52108166188 $58.59 ENDED Shop at ECS Tuning
03 Seat pan left SAFRANGELB 1 09/1993 52108166191 $57.20 ENDED Shop at ECS Tuning
03 Seat pan, right SAFRANGELB 1 09/1993 52108166192 $57.20 ENDED Shop at ECS Tuning
03 Seat pan left BLAUVIOLETT 1 09/1993 52108166193 $58.59 ENDED Shop at ECS Tuning
03 Seat pan, right BLAUVIOLETT 1 09/1993 52108166194 $57.20 ENDED Shop at ECS Tuning
03 Seat pan left HELLGRAU 1 09/1993 52108166347 $75.73 ENDED Shop at ECS Tuning
03 Seat pan, right HELLGRAU 1 09/1993 52108166348 $75.73 ENDED Shop at ECS Tuning
04 Rear panel HELLGRAU 2 09/1994 52102266066 $205.37 ENDED Shop at ECS Tuning
04 Rear panel BLAUVIOLETT 2 09/1994 52102269840 $198.59 ENDED Shop at ECS Tuning
04 Rear panel SCHWARZ 2 09/1994 52108201675 $162.16 ENDED Shop at ECS Tuning
04 Rear panel BEIGE 2 09/1994 52108201676 $152.89 ENDED Shop at ECS Tuning
04 Rear panel SAFRANGELB 2 09/1994 52108201680 $152.89 ENDED, +core Shop at ECS Tuning
04 Rear panel KLASSISCHROT 2 09/1994 52108201884 $152.89 ENDED, +core Shop at ECS Tuning
04 Rear panel TUERKIS 2 09/1994 52108201885 $152.89 ENDED, +core Shop at ECS Tuning
05 Luggage net SCHWARZ 2 09/1994 52108202403 $59.29 ENDED Shop at ECS Tuning
05 Luggage net GRAU 2 09/1994 52108202405 $59.29 ENDED Shop at ECS Tuning
05 Luggage net HELLGRAU 2 09/1994 52108202406 $59.29 ENDED Shop at ECS Tuning
05 Luggage net BEIGE 2 09/1994 52108202407 $59.29 Shop at ECS Tuning
05 Luggage net KLASSISCHROT 2 09/1994 52108202408 $59.29 ENDED Shop at ECS Tuning
05 Luggage net TUERKIS 2 09/1994 52108202409 $55.80 ENDED Shop at ECS Tuning
05 Luggage net BLAUVIOLETT 2 09/1994 52108202410 $59.29 Shop at ECS Tuning
05 Luggage net SAFRANGELB 2 09/1994 52108202411 $55.80 ENDED Shop at ECS Tuning
06 Clamp X 52108130678 $0.23 Shop at ECS Tuning
08 Clamp 1,6X20X10,1 X 52101945543 $0.09 Shop at ECS Tuning
09 Backrest Shell covering SCHWARZ 2 52108130755 $5.45 Shop at ECS Tuning
09 Backrest Shell covering GRAU 2 09/1993 52108166254 $5.45 ENDED Shop at ECS Tuning
09 Backrest Shell covering BEIGE 2 09/1993 52108166255 $5.45 ENDED Shop at ECS Tuning
09 Backrest Shell covering TUERKIS 2 09/1993 52108166256 $5.80 ENDED Shop at ECS Tuning
09 Backrest Shell covering KLASSISCHROT 2 09/1993 52108166257 $5.80 ENDED Shop at ECS Tuning
09 Backrest Shell covering HELLGRAU 2 09/1993 52108166258 $5.45 ENDED Shop at ECS Tuning
09 Backrest Shell covering SAFRANGELB 2 09/1993 52108166259 $5.80 ENDED Shop at ECS Tuning
09 Backrest Shell covering BLAUVIOLETT 2 09/1993 52108166260 $5.80 ENDED Shop at ECS Tuning
10 Screw ISA M6X15 4 52108130880 $0.42 Shop at ECS Tuning
13 Axial securing clip 15X5,7MM X 09/1994 07149158226 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
