Front seat frame mech./el./singl.parts for BMW 3 Series E46 318i (2004)

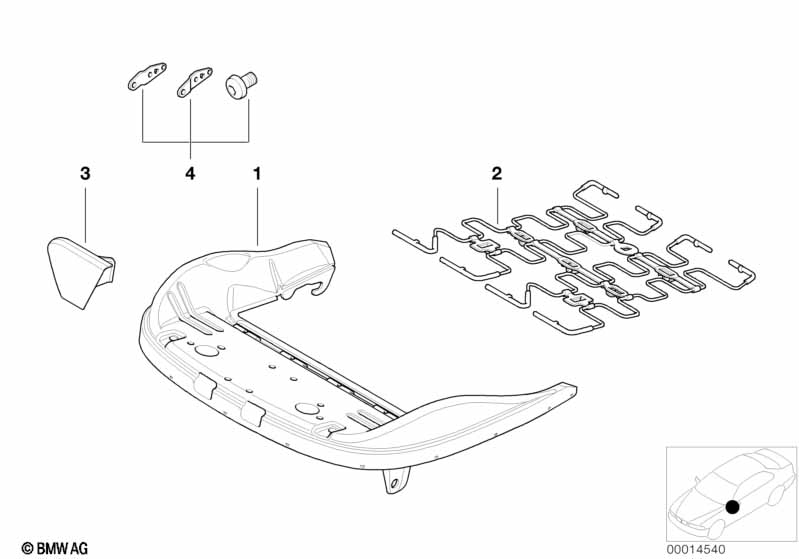

This Front seat frame mech./el./singl.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.

Front seat frame mech./el./singl.parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seat pan 2 52108226420 $52.77 Shop at ECS Tuning
02 Elastic mat 2 52108099027 $18.93 ENDED Shop at ECS Tuning
03 Covering inner left SCHWARZ 2 52108226407 $7.63 Shop at ECS Tuning
03 Covering inner right SCHWARZ 2 52108226408 $7.63 Shop at ECS Tuning
03 Covering inner left GRAU 2 52108226409 $7.63 Shop at ECS Tuning
03 Covering inner right GRAU 2 52108226410 $7.63 ENDED Shop at ECS Tuning
03 Covering inner left HELLBEIGE 2 52108226411 $7.63 Shop at ECS Tuning
03 Covering inner right HELLBEIGE 2 52108226412 $7.63 Shop at ECS Tuning
04 set of fittings for seat shell 2 52108240499 $5.48 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
