Seat, front, head restraint, Sport seat for BMW 3 Series E46 318i (2005)

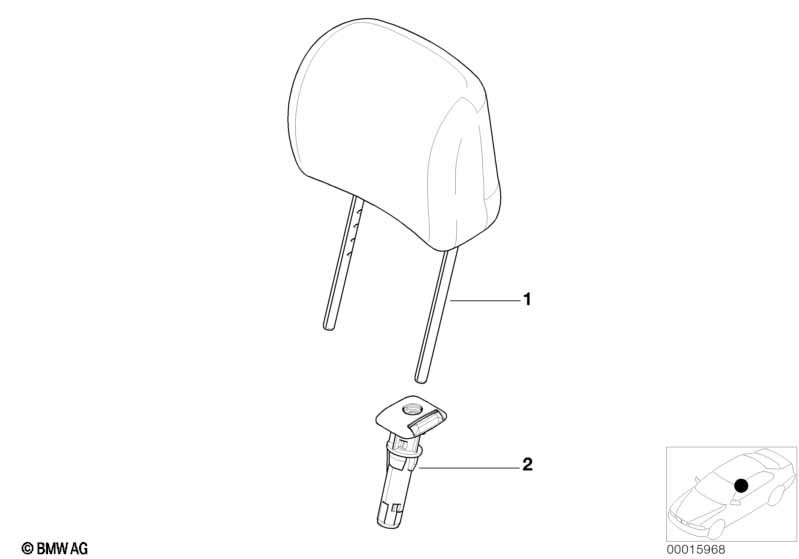

This Seat, front, head restraint, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZGRAU | 2 | 03/2003 | 52107114577 | $225.43 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 01 | Headrest leather | MYSTICBLAU | 2 | 03/2003 | 52107114544 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107048414 | $234.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 01 | Headrest leather | LIGHTGELB | 2 | 52107048415 | $225.43 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 01 | Headrest imitation leather | HELLBEIGE | 2 | 09/2001 | 52107063371 | $132.20 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 09/2001 | 52107059153 | $213.25 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | Headrest leather | HELLBEIGE | 2 | 09/2001 | 52107059154 | $213.25 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Scritto"/black-grau |
V8TM=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZGRAU | 2 | 03/2003 | 52107114543 | $249.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 01 | Headrest leather | NATURBRAUN | 2 | 52107043134 | $213.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 09/2001 | 52107063370 | $132.20 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 01 | Headrest leather | KIESELGRAU | 2 | 03/2003 | 52107114576 | $249.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 01 | Headrest cloth-leather | TRAUMROT | 2 | 52107043129 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 01 | Headrest leather | BROMBEER | 2 | 52107048416 | $225.43 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather M-texture/Alcantara/anthrazit |
X1AT=Yes |
|||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 52107895596 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 09/2001 | 52107059126 | $213.25 | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Headrest cloth-leather | ANTHRAZIT | 2 | 09/2001 | 52107063372 | $158.47 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 09/2001 | 52107063373 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Fabric Tex 2000/anthracite |
S481A=Yes J1AT=Yes |
|||||||||
| 01 | Head rest cloth front | ANTHRAZIT | 2 | 52107047011 | $107.42 | +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Laser"/anthracite |
S481A=Yes G7AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107890418 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Fabric Tex 2000/brombeer |
S481A=Yes J1BB=Yes |
|||||||||
| 01 | Head rest cloth front | BROMBEER | 2 | 52107047012 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Fabric Jacquard/anthracite |
S481A=Yes H9AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107045632 | $107.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Fabric Tex 2000/techno-grau |
S481A=Yes J1TF=Yes |
|||||||||
| 01 | Head rest cloth front | TECHNOGRAU | 2 | 52107047010 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Fabric Jacquard/gray |
S481A=Yes H9TT=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52107045633 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Guide right | SCHWARZ | 2 | 52108226262 | $13.38 | Shop at ECS Tuning | ||||
| 02 | Guide right | GRAU | 2 | 52108226264 | $1.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide right | HELLBEIGE | 2 | 52108226266 | $13.38 | Shop at ECS Tuning | ||||
| Button | ||||||||||
| 02 | Guide left | SCHWARZ | 2 | 52108226261 | $13.38 | Shop at ECS Tuning | ||||
| 02 | Guide left | GRAU | 2 | 52108226263 | $1.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide left | HELLBEIGE | 2 | 52108226265 | $13.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
