Seat, front, uphlstry, cover, Sport seat for BMW 3 Series E46 325i (2004)

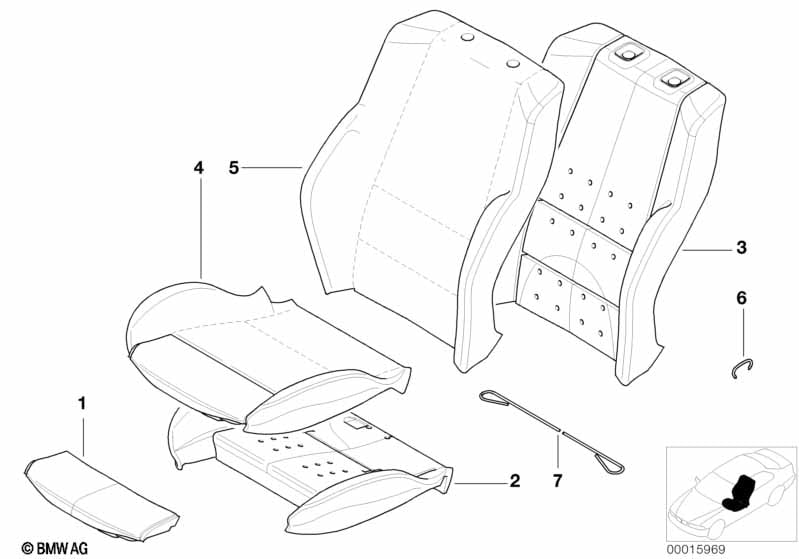

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model with seat heating ALSO FOR VEHICLES WITHOUT Seat heating |
|||||||||
| 01 | Thigh support upholstery | 2 | 52108226419 | $31.93 | Shop at ECS Tuning | |||||
| 02 | Seat upholstery | 2 | 52108214937 | $120.20 | Shop at ECS Tuning | |||||
| 03 | Backrest upholstery | 2 | 52108214938 | $132.25 | Shop at ECS Tuning | |||||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 04 | Seat cover leather | BROMBEER | 2 | 52107048444 | $739.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 04 | Seat cover | GRAU | 2 | 52108234942 | $581.55 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 2 | 52107047039 | $254.45 | Shop at ECS Tuning | ||||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZGRAU | 2 | 03/2003 | 52107114706 | $613.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 04 | Seat cover leather | KIESELGRAU | 2 | 03/2003 | 52107114705 | $613.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 04 | Seat cover | ANTHRAZIT | 2 | 52107890414 | $457.69 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 2 | 52107030651 | $547.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 2 | 52107045754 | $254.45 | Shop at ECS Tuning | ||||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 2 | 52107048443 | $739.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 2 | 52108099182 | $269.23 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 04 | Seat cover cloth | TECHNOGRAU | 2 | 52107047038 | $254.45 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 04 | Seat cover vinyl | HELLBEIGE | 2 | 52108099183 | $269.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 04 | Seat cover | HELLBEIGE | 2 | 52108234943 | $581.55 | Shop at ECS Tuning | ||||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 2 | 52107048442 | $581.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/black-grau |
V8TM=Yes |
|||||||||
| 04 | Cloth/leather seat cover | SCHWARZGRAU | 2 | 03/2003 | 52107114702 | $547.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 04 | Seat cover | NATURBRAUN | 2 | 52107037898 | $581.55 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 04 | Cloth/leather seat cover | MYSTICBLAU | 2 | 03/2003 | 52107114703 | $547.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 04 | Seat cover | ANTHRAZIT | 2 | 52108234915 | $547.96 | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 04 | Seat cover | SCHWARZ | 2 | 52108234941 | $581.55 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 2 | 52107045755 | $254.45 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 04 | Seat cover cloth | BROMBEER | 2 | 52107047040 | $254.45 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 05 | Cover backrest, leather | BROMBEER | 2 | 52107048448 | $695.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 05 | Backrest cover | GRAU | 2 | 52108234947 | $695.57 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 05 | Cover backrest cloth | ANTHRAZIT | 2 | 52107047043 | $262.26 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 05 | Cover backrest, leather | SCHWARZGRAU | 2 | 03/2003 | 52107114712 | $739.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 05 | Cover backrest, leather | KIESELGRAU | 2 | 03/2003 | 52107114711 | $739.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 05 | Backrest cover | ANTHRAZIT | 2 | 52107890416 | $555.17 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 05 | Cloth/leather backrest cover | ANTHRAZIT | 2 | 52107030655 | $547.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 05 | Cover backrest cloth | ANTHRAZIT | 2 | 52107045757 | $254.45 | Shop at ECS Tuning | ||||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 05 | Cover backrest, leather | LIGHTGELB | 2 | 52107048447 | $739.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 05 | Cover backrest, imitation leather | SCHWARZ | 2 | 52108099185 | $326.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 05 | Cover backrest cloth | TECHNOGRAU | 2 | 52107047042 | $262.26 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 05 | Cover backrest, imitation leather | HELLBEIGE | 2 | 52108099186 | $326.59 | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 05 | Backrest cover | HELLBEIGE | 2 | 52108234948 | $695.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 05 | Cover backrest, leather | SCHWARZ | 2 | 52107048446 | $695.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/black-grau |
V8TM=Yes |
|||||||||
| 05 | Cloth/leather backrest cover | SCHWARZGRAU | 2 | 03/2003 | 52107114708 | $547.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 05 | Backrest cover | NATURBRAUN | 2 | 52107043096 | $695.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 05 | Cloth/leather backrest cover | MYSTICBLAU | 2 | 03/2003 | 52107114709 | $547.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 05 | Backrest cover | ANTHRAZIT | 2 | 52108234918 | $547.96 | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 05 | Covering | SCHWARZ | 2 | 52108234946 | $695.57 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 05 | Cover backrest cloth | GRAU | 2 | 52107045758 | $254.45 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 05 | Cover backrest cloth | BROMBEER | 2 | 52107047044 | $262.26 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
