BMW sports seat frame mechanical for BMW 3 Series E46 325xi (2004)
This BMW sports seat frame mechanical technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Carrier thigh support | 2 | 52108226281 | $61.70 | Shop at ECS Tuning | |||||
| 02 | Seat pan | 2 | 52108226420 | $52.77 | Shop at ECS Tuning | |||||
| 03 | Elastic mat | 2 | 52108099027 | $18.93 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 04 | Spring | 2 | 52108099031 | $1.93 | Shop at ECS Tuning | |||||
| 05 | set of fittings for seat shell | 2 | 52108240499 | $5.48 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 06 | set of fittings for thigh support | 2 | 52108240496 | $4.42 | Shop at ECS Tuning | |||||
| 07 | set of fittings for seat insets | 2 | 52108251432 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 08 | Front seat cover | SCHWARZ | 2 | 52108235777 | $16.43 | ENDED | Shop at ECS Tuning | |||
| 08 | Front seat cover | GRAU | 2 | 52108235778 | $16.43 | Shop at ECS Tuning | ||||
| 08 | Front seat cover | HELLBEIGE 2 | 2 | 52108235779 | $16.43 | Shop at ECS Tuning | ||||
| 09 | Covering inner left | SCHWARZ | 2 | 52108226407 | $7.63 | Shop at ECS Tuning | ||||
| 09 | Covering inner right | SCHWARZ | 2 | 52108226408 | $7.63 | Shop at ECS Tuning | ||||
| 09 | Covering inner left | GRAU | 2 | 52108226409 | $7.63 | Shop at ECS Tuning | ||||
| 09 | Covering inner right | GRAU | 2 | 52108226410 | $7.63 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering inner left | HELLBEIGE | 2 | 52108226411 | $7.63 | Shop at ECS Tuning | ||||
| 09 | Covering inner right | HELLBEIGE | 2 | 52108226412 | $7.63 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi BMW sports seat frame mechanical?

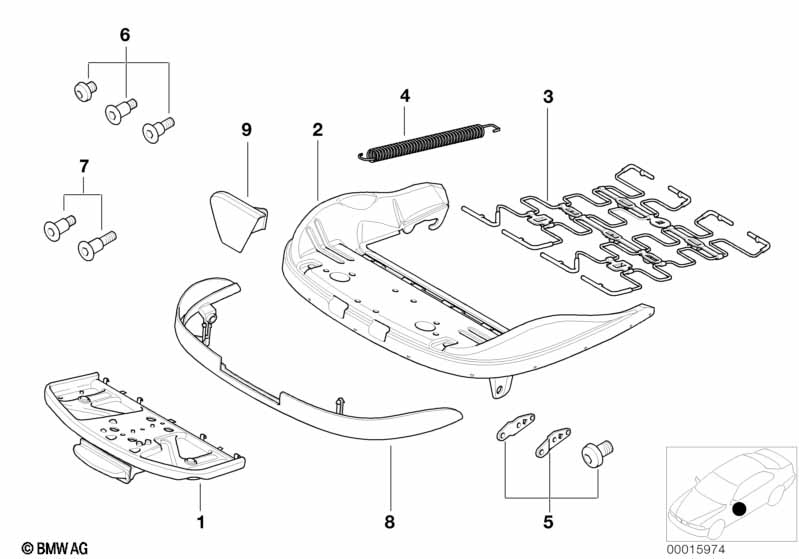

- This technical diagram illustrates the BMW sports seat frame mechanical within the Seats group for the 3 Series E46 325xi produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Carrier thigh support (Part #52108226281).
- Which models use the hardware listed in this BMW sports seat frame mechanical?
- The hardware and components featured in the BMW sports seat frame mechanical are specific to the 3 Series E46 325xi produced during 2004. These technical specifications ensure that parts like the Carrier thigh support (52108226281) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sports seat frame mechanical assembly?
- Each item in the BMW sports seat frame mechanical corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Carrier thigh support by locating its position on the schematic, which then links to the official BMW part number 52108226281 for the Seats section.
