Front seat backrest frame/rear panel for BMW 3 Series E46 318i (2004)

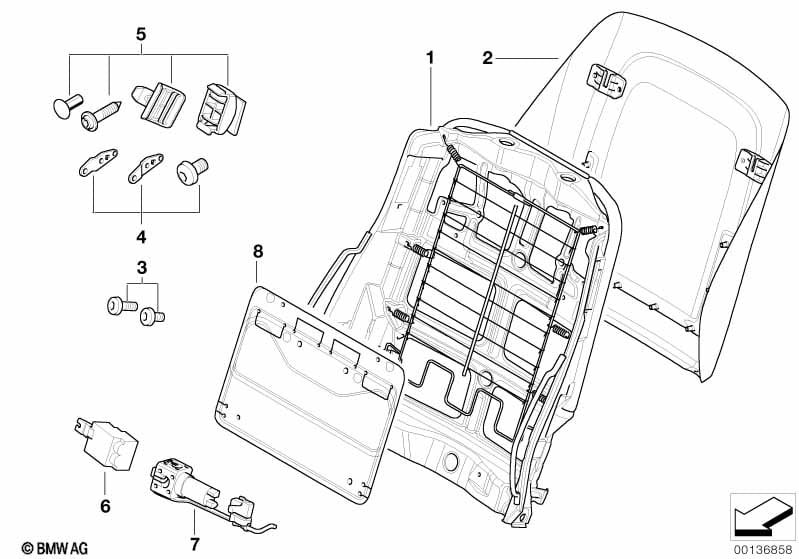

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Backrest frame | 2 | 52108234341 | $71.47 | Shop at ECS Tuning | |||||
| 02 | Rear panel with net bag | SCHWARZ | 2 | 52108235907 | $109.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear panel with net bag | GRAU | 2 | 52108235908 | $109.95 | Shop at ECS Tuning | ||||
| 02 | Rear panel with net bag | BEIGE HELL | 2 | 52108235909 | $109.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High |
V5=Yes |
|||||||||
| 02 | Rear panel with net bag | V5BB BROMBEER | 2 | 52107047117 | $263.95 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather, mosaic/walknappa |
S481A=Yes Q9=Yes |
|||||||||
| 02 | Rear panel with net bag | Q9HC HELLBEIGE | 2 | 03/1999 | 52108267637 | $268.95 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather, mosaic/walknappa or Leather High |
S481A=Yes Q9=Yes V5=Yes |
|||||||||
| 02 | Rear panel with net bag | Q9L7SW SCHWARZ | 2 | 03/1999 | 52108267636 | $268.95 | ENDED | Shop at ECS Tuning | ||
| 02 | Rear panel with net bag | Q9LT LIGHTGELB | 2 | 03/1999 | 52108267638 | $268.95 | ENDED | Shop at ECS Tuning | ||
| 03 | set of fittings for seat insets | 2 | 52108251432 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | set of fittings for seat shell | 2 | 52108240499 | $5.48 | Shop at ECS Tuning | |||||
| 05 | set of fittings for backrest rear panel | 2 | 52108240495 | $16.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Valve unit | 2 | 06/2002 | 52107160372 | $103.32 | Shop at ECS Tuning | ||||
| 07 | Lumbar support pump | 2 | 06/2002 | 67807025381 | $115.41 | ENDED | Shop at ECS Tuning | |||
| 08 | Lordosis pad | 2 | 52108099007 | $62.83 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
