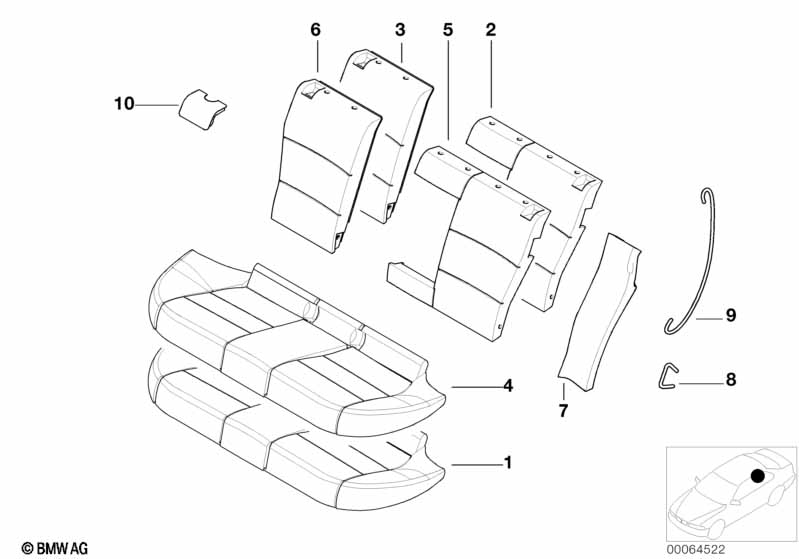

Seat, rear, uphlstry/cover, load-through for BMW 3 Series E46 330xi (2001)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model without heated seat | |||||||||
| 01 | Seat upholstery | 1 | 52208214940 | $197.49 | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Seat upholstery | 1 | 52207009898 | $197.49 | Shop at ECS Tuning | |||||
| 02 | Left backrest upholstery | 1 | 52208214969 | $119.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right backrest upholstery | 1 | 52208214970 | $76.04 | Shop at ECS Tuning | |||||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2001 | 52208267734 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207890277 | $566.37 | Shop at ECS Tuning | ||||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 04 | Seat cover cloth | PEACH | 1 | 09/2001 | 52208267730 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 04 | Seat cover cloth | MINTGRÜN | 1 | 09/2001 | 52208214963 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52208215002 | $566.37 | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 1 | 09/2001 | 52207026555 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52208240445 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 04 | Seat cover cloth | LAVENDEL | 1 | 09/2001 | 52208215005 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 04 | Seat cover cloth | TIEFGRÜN | 1 | 09/2001 | 52208215003 | $566.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 04 | Seat cover cloth | MARINEBLAU | 1 | 09/2001 | 52208214964 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 09/2001 | 52208215013 | $957.97 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 04 | Seat cover leather | TANINROT | 1 | 09/2001 | 52208215012 | $890.01 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52208214962 | $293.51 | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 09/2001 | 52208267735 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | HELLBEIGE | 1 | 09/2001 | 52208267732 | $547.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 52208215011 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 09/2001 | 52208267736 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 1 | 09/2001 | 52208214965 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Fabric Jacquard/anthracite |
S470A=Yes H9AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207045668 | $293.51 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System and Leather Montana/basic equip/schwarz |
S470A=Yes N6SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52207000875 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth flock "Raute"/grey |
S470A=Yes E3TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 1 | 09/2001 | 52207000868 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Montana/basic equip/mahagoni |
S470A=Yes N6NG=Yes |
|||||||||
| 04 | Seat cover leather | NATURBRAUN | 1 | 52207043189 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather High/black |
S470A=Yes V5SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52207048550 | $1076.94 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth/leather "Maglia"/hell-beige 2 |
S470A=Yes E9HC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | HELLBEIGE | 1 | 52207000889 | $740.43 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Fabric, fl.weave,open rhombus/peach |
S470A=Yes E8PP=Yes |
|||||||||
| 04 | Seat cover cloth | PEACH | 1 | 09/2001 | 52207031436 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Fabric Jacquard bicolor Moda/lavendel |
S470A=Yes E5LA=Yes |
|||||||||
| 04 | Seat cover cloth | LAVENDEL | 1 | 09/2001 | 52207000883 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Fabric/leather "Gran Turismo/tief-grün" |
S470A=Yes E4GG=Yes |
|||||||||
| 04 | Seat cover cloth | TIEFGRÜN | 1 | 09/2001 | 52207000881 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Imitation leather/black |
S470A=Yes K4SW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52207000872 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather High/light gelb |
S470A=Yes V5LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 52207048551 | $1076.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth/leather "Bianco-Nero"/anthracite/w |
S470A=Yes H7BC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52207026553 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Mosaico expanded/black |
S470A=Yes Q9SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2001 | 52207000885 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Mosaico expanded/lightgelb |
S470A=Yes Q9LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 09/2001 | 52207000887 | $1067.75 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Montana/basic equip/taninrot |
S470A=Yes N6TD=Yes |
|||||||||
| 04 | Seat cover leather | TANINROT | 1 | 09/2001 | 52207000878 | $890.01 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth flock "Raute"/anthracite |
S470A=Yes E3AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52207000867 | $293.51 | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Montana/basic equip/hell-beige 2 |
S470A=Yes N6HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 52207000877 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth flock "Raute"/mint-green |
S470A=Yes E3AP=Yes |
|||||||||
| 04 | Seat cover cloth | MINTGRÜN | 1 | 09/2001 | 52207000870 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth flock "Raute"/navy blue |
S470A=Yes E3DL=Yes |
|||||||||
| 04 | Seat cover cloth | MARINEBLAU | 1 | 09/2001 | 52207000869 | $448.07 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Mosaico expanded/light beige |
S470A=Yes Q9HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 09/2001 | 52207000886 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth/leather "Gran Turismo"/anthracite |
S470A=Yes E4AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207000880 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Montana/basic equip/grau |
S470A=Yes N6TT=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 52207000876 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Vinyl light beige 2 |
S470A=Yes K4HC=Yes |
|||||||||
| 04 | Seat cover vinyl | HELLBEIGE | 1 | 52207000873 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather High/brombeer |
S470A=Yes V5BB=Yes |
|||||||||
| 04 | Seat cover leather | BROMBEER | 1 | 52207048552 | $1076.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Fabric Jacquard/gray |
S470A=Yes H9TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 1 | 52207045669 | $293.51 | Shop at ECS Tuning | ||||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 09/2001 | 52208267750 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207890287 | $208.29 | Shop at ECS Tuning | ||||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 05 | Cover backrest cloth left | PEACH | 1 | 09/2001 | 52208267746 | $160.70 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 05 | Cover backrest cloth left | E3AP MINTGRUEN | 1 | 09/2001 | 52208236165 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52208225759 | $373.86 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52207026248 | $347.49 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 05 | Cover backrest leather left | BROMBEER | 1 | 52207048544 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52208225775 | $446.76 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 05 | Cover backrest cloth left | LAVENDEL | 1 | 09/2001 | 52208225765 | $160.70 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 05 | Cover backrest cloth left | TIEFGRÜN | 1 | 09/2001 | 52208225761 | $373.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 05 | Cover backrest cloth left | TECHNOGRAU | 1 | 52207047409 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 05 | Cover backrest cloth left | MARINEBLAU | 1 | 09/2001 | 52208225753 | $141.73 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 05 | Cover backrest leather left | GRAU | 1 | 52208225781 | $446.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 05 | Cover backrest leather left | TANINROT | 1 | 09/2001 | 52208225779 | $446.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 05 | Cover backrest vinyl left | SCHWARZ | 1 | 52208236180 | $208.29 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 05 | Cover backrest leather left | LIGHTGELB | 1 | 52207048543 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207045662 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | E3AT ANTHRAZIT | 1 | 09/2001 | 52208236162 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52207048542 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 05 | Cover backrest leather left | KIESELGRAU | 1 | 52207122669 | $611.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLBEIGE | 1 | 09/2001 | 52208267751 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | HELLBEIGE | 1 | 52208267748 | $373.86 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLBEIGE | 1 | 52208225777 | $446.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 05 | Cover backrest leather left | LIGHTGELB | 1 | 09/2001 | 52208267752 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 05 | Cover backrest cloth left | GRAU | 1 | 09/2001 | 52208225755 | $160.70 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 05 | Cover backrest leather left | NATURBRAUN | 1 | 52207043187 | $446.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 05 | Cover backrest cloth left | GRAU | 1 | 52207045663 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207047410 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 05 | Cover backrest vinyl left | HELLBEIGE | 1 | 52208236181 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52207122670 | $611.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 05 | Cover backrest cloth left | BROMBEER | 1 | 52207047411 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 09/2001 | 52208267758 | $426.31 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207890291 | $129.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 06 | Cover backrest cloth right | PEACH | 1 | 09/2001 | 52208267754 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 06 | Cover backrest cloth right | MINTGRÜN | 1 | 09/2001 | 52208225752 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52208225760 | $267.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52207026250 | $267.84 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 06 | Cover backrest leather right | BROMBEER | 1 | 52207048548 | $405.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52208225776 | $288.11 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 06 | Cover backrest cloth right | LAVENDEL | 1 | 09/2001 | 52208225766 | $107.42 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 06 | Cover backrest cloth right | TIEFGRÜN | 1 | 09/2001 | 52208225762 | $267.84 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 06 | Cover backrest cloth right | TECHNOGRAU | 1 | 52207047413 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 06 | Cover backrest cloth right | MARINEBLAU | 1 | 09/2001 | 52208225754 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 06 | Cover backrest leather right | GRAU | 1 | 52208225782 | $288.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 06 | Cover backrest leather right | TANINROT | 1 | 09/2001 | 52208225780 | $429.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52208248200 | $129.08 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 06 | Cover backrest leather right | LIGHTGELB | 1 | 52207048547 | $405.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207045665 | $107.42 | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | E3AT ANTHRAZIT | 1 | 09/2001 | 52208248185 | Shop at ECS Tuning | ||||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52207048546 | $405.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 06 | Cover backrest leather right | KIESELGRAU | 1 | 52207122675 | $429.66 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 09/2001 | 52208267759 | $429.66 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | HELLBEIGE | 1 | 52208267756 | $267.84 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 52208225778 | $288.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 06 | Cover backrest leather right | LIGHTGELB | 1 | 09/2001 | 52208267760 | $429.66 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 06 | Cover backrest cloth right | GRAU | 1 | 09/2001 | 52208225756 | $107.42 | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 06 | Cover backrest leather right | NATURBRAUN | 1 | 52207043186 | $288.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 06 | Cover backrest cloth right | GRAU | 1 | 52207045666 | $107.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207047414 | $107.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 52208248201 | $129.08 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52207122676 | $429.66 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 06 | Cover backrest cloth right | BROMBEER | 1 | 52207047415 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 09/2001 | 52208267771 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 09/2001 | 52208267772 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207890297 | $219.85 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207890298 | $219.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 07 | Lateral trim panel left | PEACH | 1 | 09/2001 | 52208267763 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | PEACH | 1 | 09/2001 | 52208267764 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 07 | Lateral trim panel left | MINTGRÜN | 1 | 09/2001 | 52208254925 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | MINTGRÜN | 1 | 09/2001 | 52208254926 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52208254933 | $219.85 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52208254934 | $219.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207026701 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207026702 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 07 | Lateral trim panel left | BROMBEER | 1 | 52207055137 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | BROMBEER | 1 | 52207055138 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208254947 | $318.28 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208254948 | $318.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 07 | Lateral trim panel left | LAVENDEL | 1 | 09/2001 | 52208254939 | $157.36 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | LAVENDEL | 1 | 09/2001 | 52208254940 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 07 | Lateral trim panel left | TIEFGRÜN | 1 | 09/2001 | 52208254935 | $219.85 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | TIEFGRÜN | 1 | 09/2001 | 52208254936 | $219.85 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 07 | Lateral trim panel left | MARINEBLAU | 1 | 09/2001 | 52208254927 | $157.36 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | MARINEBLAU | 1 | 09/2001 | 52208254928 | $157.36 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 07 | Lateral trim panel left | GRAU | 1 | 52208254953 | $318.28 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | GRAU | 1 | 52208254954 | $318.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 07 | Lateral trim panel left | TANINROT | 1 | 09/2001 | 52208254951 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | TANINROT | 1 | 52208254952 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208254957 | $159.64 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208254958 | $159.64 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207045709 | $157.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207045710 | $157.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 09/2001 | 52208254923 | $159.64 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 09/2001 | 52208254924 | $157.36 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 09/2001 | 52208267773 | $273.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 09/2001 | 52208267774 | $329.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 07 | Lateral trim panel left | LIGHTGELB | 1 | 09/2001 | 52208267775 | $329.22 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | LIGHTGELB | 1 | 09/2001 | 52208267776 | $329.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 07 | Lateral trim panel left | GRAU | 1 | 09/2001 | 52208254929 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | GRAU | 1 | 09/2001 | 52208254930 | $157.36 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 07 | Lateral trim panel right | NATURBRAUN | 1 | 52207043192 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel left | NATURBRAUN | 1 | 52237043191 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 07 | Lateral trim panel left | GRAU | 1 | 52207045711 | $157.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | GRAU | 1 | 52207045712 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207047425 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207047426 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 52208254959 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 52208254960 | $159.64 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 07 | Lateral trim panel left | BROMBEER | 1 | 52207047427 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | BROMBEER | 1 | 52207047428 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
E9HC=Yes N6HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 52208254949 | $318.28 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 52208254950 | $318.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb or Leather High/light gelb |
Q9LT=Yes V5LT=Yes |
|||||||||
| 07 | Lateral trim panel left | LIGHTGELB | 1 | 52208267775 | $329.22 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | LIGHTGELB | 1 | 52208267776 | $329.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black or Leather High/black |
Q9SW=Yes V5SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208267771 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208267772 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Clamp | 1,6X20X10,1 | 2 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Wire-strap | L=1800MM | 2 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 10 | Cover isofix | ANTHRAZIT | 4 | 52207009903 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | GRAU | 4 | 52207009904 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | HELLBEIGE | 4 | 52207009907 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | LIGHTGELB | 4 | 52207009909 | $7.03 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | PEACH | 4 | 52207010924 | $7.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xi Seat, rear, uphlstry/cover, load-through?
- This technical diagram illustrates the Seat, rear, uphlstry/cover, load-through within the Seats group for the 3 Series E46 330xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Seat upholstery (Part #52208214940).
- Which models use the hardware listed in this Seat, rear, uphlstry/cover, load-through?
- The hardware and components featured in the Seat, rear, uphlstry/cover, load-through are specific to the 3 Series E46 330xi produced during 2001. These technical specifications ensure that parts like the Seat upholstery (52208214940) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, uphlstry/cover, load-through assembly?
- Each item in the Seat, rear, uphlstry/cover, load-through corresponds to the numbered list below the illustration. For the 3 Series E46 330xi, you can identify the Seat upholstery by locating its position on the schematic, which then links to the official BMW part number 52208214940 for the Seats section.
