Recaro sports seat part for BMW 1502-2002tii 2002 (1971)

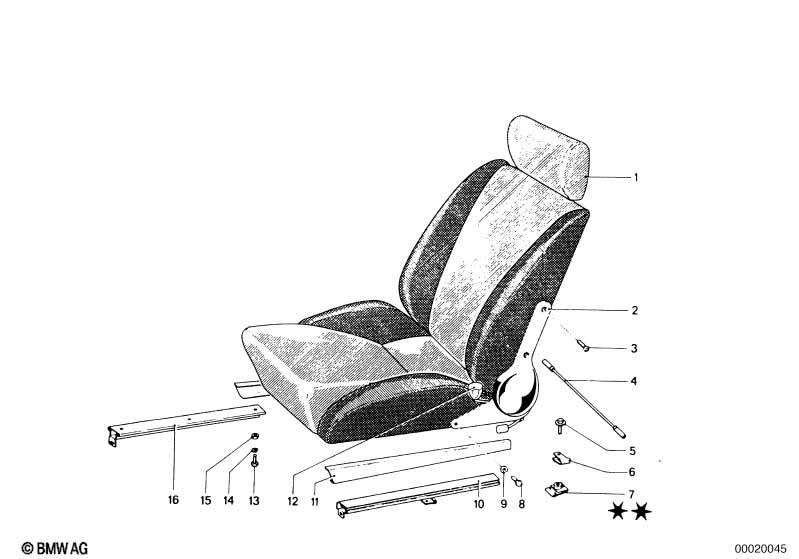

This Recaro sports seat part technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headrest | 2 | 52101826785 | ENDED | Shop at ECS Tuning | |||||
| 02 | Reclining seat fitting | 1 | 52101830789 | ENDED | Shop at ECS Tuning | |||||
| 02 | Reclining seat fitting | 1 | 52101830790 | ENDED | Shop at ECS Tuning | |||||
| 03 | Csk.fillister head srew | 8 | 52101830796 | ENDED | Shop at ECS Tuning | |||||
| 04 | Connection rod | 2 | 52101830795 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X25 | 4 | 52101820255 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap | 2 | 52107402073 | ENDED | Shop at ECS Tuning | |||||
| 06 | Protection cap | 2 | 52107402074 | ENDED | Shop at ECS Tuning | |||||
| 07 | Nut holder | 8 | 51161813920 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | 4 | 52101830079 | ENDED | Shop at ECS Tuning | |||||
| 09 | Washer | 4 | 52101830801 | ENDED | Shop at ECS Tuning | |||||
| 10 | Seat rail outer left | 1 | 52101844371 | ENDED | Shop at ECS Tuning | |||||
| 10 | Seat rail outer right | 1 | 52101844372 | $29.05 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering plate, left | 1 | 52101830787 | ENDED | Shop at ECS Tuning | |||||
| 11 | Covering plate, right | 1 | 52101830788 | ENDED | Shop at ECS Tuning | |||||
| 12 | Button | 4 | 52101830780 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X20-8.8-ZNS | 8 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 14 | Spring washer | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hex nut | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Seat rail inner | 2 | 52101819392 | $19.98 | ENDED | Shop at ECS Tuning | ||||
| 17 | Cloth sport seat, left | RECARO | 1 | 52101826733 | ENDED | Shop at ECS Tuning | ||||
| 17 | Cloth sport seat, right | 1 | 52101826734 | ENDED | Shop at ECS Tuning |
