Sports seat for BMW 1502-2002tii 2002 (1971)

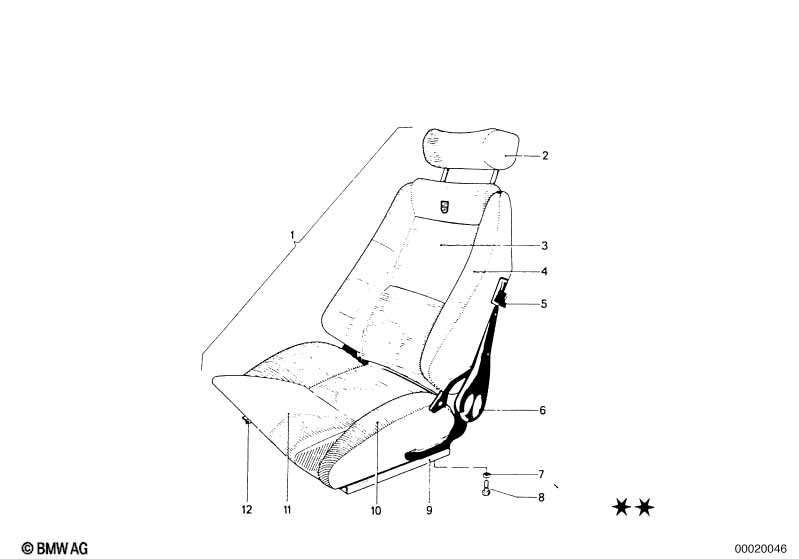

This Sports seat technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cloth sport seat, left | SCHEEL | 1 | 52101832703 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cloth sport seat, right | SCHEEL | 1 | 52101832704 | ENDED | Shop at ECS Tuning | ||||
| 02 | Head rest cloth black front | 2 | 52101832705 | ENDED | Shop at ECS Tuning | |||||
| 05 | Handle | 2 | 52101832709 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering cap | 4 | 52101832708 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X12-8.8-ZNNIV | 8 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Seat rail outer left | 1 | 52101829901 | $37.75 | ENDED | Shop at ECS Tuning | ||||
| 09 | Seat rail outer right | 1 | 52101829902 | ENDED | Shop at ECS Tuning | |||||
| 12 | Seat rail | 2 | 52101829900 | ENDED | Shop at ECS Tuning |
