Seat rail for BMW 1502-2002tii 2002 (1972)

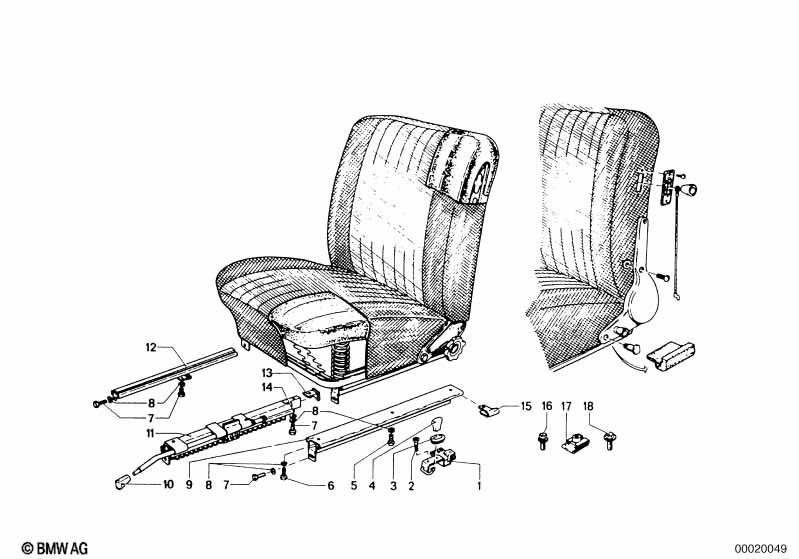

This Seat rail technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat catch outer left | 1 | 52101803731 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat catch outer right | 1 | 52101803732 | ENDED | Shop at ECS Tuning | |||||
| 02 | Countersunk head screw | M6X12 | 6 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 03 | Cover | 2 | 52101807190 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 04 | Handle | 2 | 52101803743 | $10.19 | Shop at ECS Tuning | |||||
| 05 | Cylinder | 2 | 52117402107 | ENDED | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | M6X18 | 8 | 07119919781 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spring washer | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Seat rail inner | 2 | 03/1966 | 08/1973 | 52101801459 | $297.61 | Shop at ECS Tuning | |||
| 09 | Seat rail inner | 2 | 03/1966 | 08/1973 | 52101819392 | $19.98 | ENDED | Shop at ECS Tuning | ||
| 10 | Button | 2 | 03/1966 | 04/1972 | 52117702115 | ENDED | Shop at ECS Tuning | |||
| 11 | Seat rail outer left | 1 | 03/1966 | 04/1972 | 52117402100 | ENDED | Shop at ECS Tuning | |||
| 11 | Seat rail outer right | 1 | 03/1966 | 04/1972 | 52117402101 | ENDED | Shop at ECS Tuning | |||
| 12 | Seat rail outer left | 1 | 03/1966 | 08/1973 | 52101844371 | ENDED | Shop at ECS Tuning | |||
| 12 | Seat rail outer right | 1 | 03/1966 | 08/1973 | 52101844372 | $29.05 | ENDED | Shop at ECS Tuning | ||
| 12 | Seat rail outer left | 1 | 03/1966 | 08/1973 | 52117602100 | ENDED | Shop at ECS Tuning | |||
| 12 | Seat rail outer right | 1 | 03/1966 | 08/1973 | 52117602101 | ENDED | Shop at ECS Tuning | |||
| 13 | Cap | 2 | 52117602106 | ENDED | Shop at ECS Tuning | |||||
| 14 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Protection cap | 1 | 52107402073 | ENDED | Shop at ECS Tuning | |||||
| 15 | Protection cap | 1 | 52107402074 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Seat rail?
- This technical diagram illustrates the Seat rail within the Seats group for the 1502-2002tii 2002 produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Seat catch outer left (Part #52101803731).
- Which models use the hardware listed in this Seat rail?
- The hardware and components featured in the Seat rail are specific to the 1502-2002tii 2002 produced during 1972. These technical specifications ensure that parts like the Seat catch outer left (52101803731) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rail assembly?
- Each item in the Seat rail corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Seat catch outer left by locating its position on the schematic, which then links to the official BMW part number 52101803731 for the Seats section.
