Recaro sports seat part for BMW 1502-2002tii 2002 (1976)

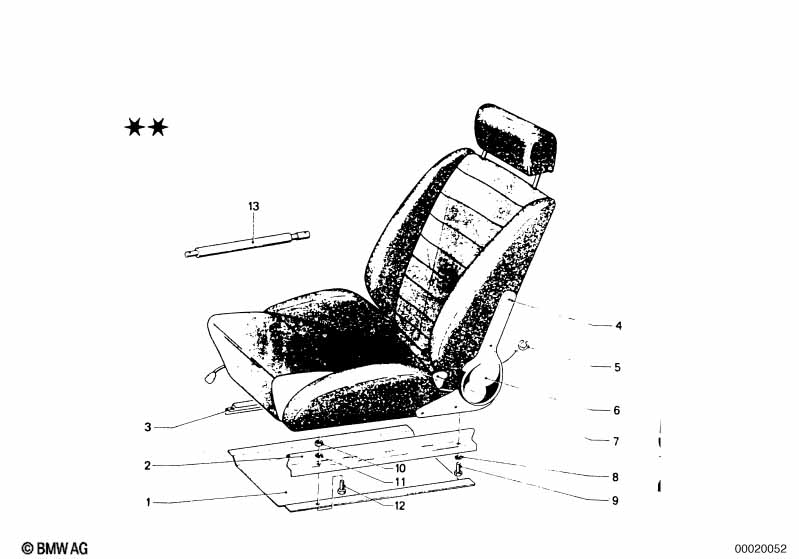

This Recaro sports seat part technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | 1 | 52101820541 | ENDED | Shop at ECS Tuning | |||||
| 01 | Console | 1 | 52101820542 | ENDED | Shop at ECS Tuning | |||||
| 02 | Seat rail | 2 | 52101808053 | ENDED | Shop at ECS Tuning | |||||
| 03 | Seat rail | 2 | 52101808054 | ENDED | Shop at ECS Tuning | |||||
| 04 | Countersunk head screw | M8X20 | 8 | 07119900869 | $0.45 | Shop at ECS Tuning | ||||
| 06 | Recl. seat fitting left | 1 | 52101808051 | ENDED | Shop at ECS Tuning | |||||
| 06 | Recl. seat fitting right | 1 | 52101808052 | ENDED | Shop at ECS Tuning | |||||
| 07 | Button | 6 | 52101807979 | ENDED | Shop at ECS Tuning | |||||
| 08 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X20-8.8-ZNS | 8 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 13 | Gas pressurized spring | 2 | 52101820545 | ENDED | Shop at ECS Tuning | |||||
| 14 | Recaro sports seat | RECHTS | 1 | 52101821440 | ENDED | Shop at ECS Tuning |
