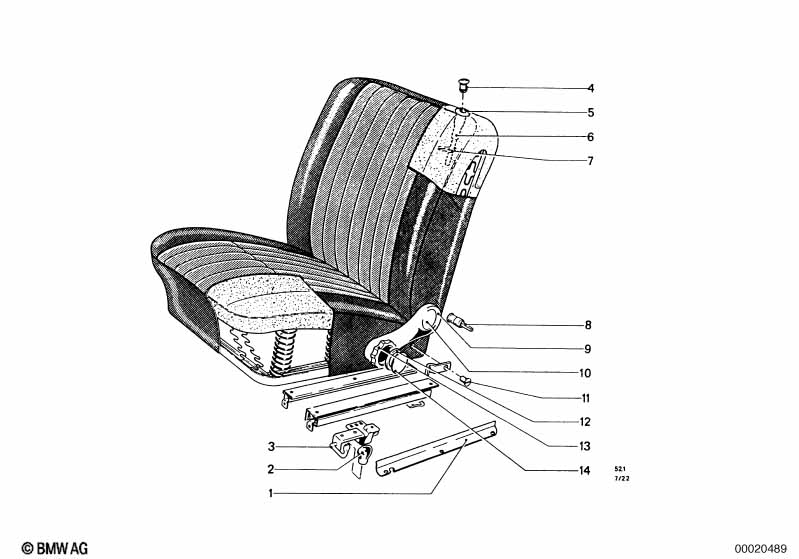

Single parts of front seat controls for BMW 1500-2000CS 2000 (1968)
This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 52101804109 | ENDED | Shop at ECS Tuning | |||||
| 01 | Cover | 1 | 52101804110 | ENDED | Shop at ECS Tuning | |||||
| 02 | Handle | 2 | 52101803743 | $10.19 | Shop at ECS Tuning | |||||
| 03 | Seat catch outer left | 1 | 52101803731 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover | 4 | 52101804556 | $4.02 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 4 | 52101805732 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sleeve | 10 MM | 4 | 52101806881 | $17.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Spring | 4 | 52101805618 | $11.94 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shaft | 1 | 52101807141 | ENDED | Shop at ECS Tuning | |||||
| 08 | Shaft | 1 | 52101807142 | ENDED | Shop at ECS Tuning | |||||
| 09 | Recl. seat fitting left | 1 | 52101800599 | ENDED | Shop at ECS Tuning | |||||
| 09 | Recl. seat fitting right | 1 | 52101800600 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cover | 4 | 52101802919 | ENDED | Shop at ECS Tuning | |||||
| 11 | Csk.fillister head srew | 4 | 52101803327 | ENDED | Shop at ECS Tuning | |||||
| 12 | Cover | 2 | 52101802920 | ENDED | Shop at ECS Tuning | |||||
| 13 | Control handle | 2 | 52101802915 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cap | 2 | 52101802916 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
