Rear seat center armrest for BMW 3 Series E46 330d (2004)

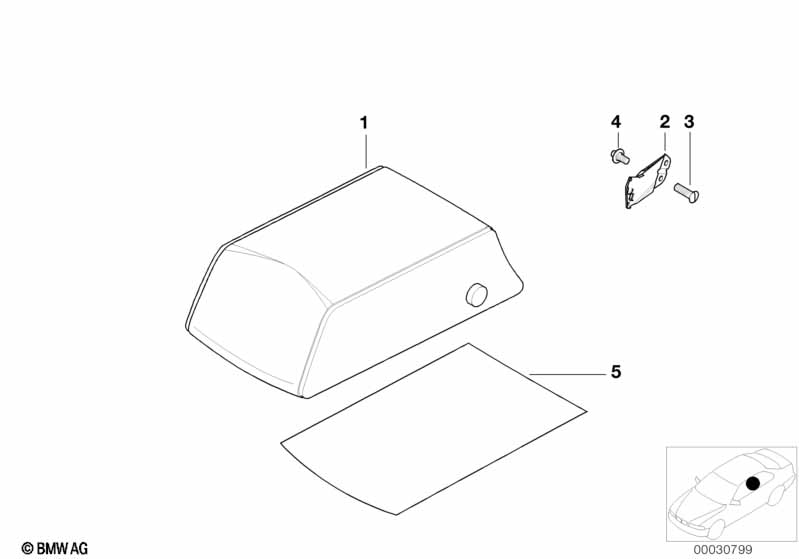

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208254974 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 52208254977 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 01 | Armrest cloth | BROMBEER | 1 | 52207047371 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52208254967 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207045641 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52207026447 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 01 | Armrest leather | BROMBEER | 1 | 52207055131 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207890426 | $563.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207047370 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 01 | Armrest leather | NATURBRAUN | 1 | 52207043152 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208267708 | $444.17 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 01 | Armrest cloth | MYSTICBLAU | 1 | 03/2003 | 52207122692 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 01 | Armrest leather | KIESELGRAU | 1 | 03/2003 | 52207122694 | $563.58 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 52207045642 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather Montana/basic equip/schwarz |
S444A=Yes N6SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208257756 | $527.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Fabric/leather "Scritto"/black-grau |
S444A=Yes V8TM=Yes |
|||||||||
| 01 | Armrest cloth | SCHWARZGRAU | 1 | 03/2003 | 52207122535 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Cloth/leather "Bianco-Nero"/anthracite/w |
S444A=Yes H7BC=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52207026449 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather Montana/basic equip/grau |
S444A=Yes N6TT=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 52208257759 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
E9HC=Yes N6HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208254975 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/black-grau |
V3TM=Yes V8TM=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZGRAU | 1 | 03/2003 | 52207122695 | $563.58 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/lightgelb or Leather High/light gelb |
Q9LT=Yes V5LT=Yes |
|||||||||
| 01 | Armrest leather | LIGHTGELB | 1 | 52208267712 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Cloth "Laser"/anthracite |
S444A=Yes G7AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207890273 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Cloth/leather "Gran Turismo"/anthracite |
S444A=Yes E4AT=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52208257749 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather, "Chameleon"/kiesel-grau |
S444A=Yes V3KA=Yes |
|||||||||
| 01 | Armrest leather | KIESELGRAU | 1 | 03/2003 | 52207122538 | $563.58 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black or Leather High/black |
Q9SW=Yes V5SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208267710 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Fabric Jacquard/anthracite |
S444A=Yes H9AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207045647 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Fabric/leather "Scritto"/mystic-blau |
S444A=Yes V8MF=Yes |
|||||||||
| 01 | Armrest cloth | MYSTICBLAU | 1 | 03/2003 | 52207122536 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Fabric Jacquard/gray |
S444A=Yes H9TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 52207045648 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Fabric Tex 2000/brombeer |
S444A=Yes J1BB=Yes |
|||||||||
| 01 | Armrest cloth | BROMBEER | 1 | 52207047379 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Fabric Tex 2000/anthracite |
S444A=Yes J1AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207047378 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather Montana/basic equip/mahagoni |
S444A=Yes N6NG=Yes |
|||||||||
| 01 | Armrest leather | NATURBRAUN | 1 | 52207043155 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather, "Chameleon"/black-gray |
S444A=Yes V3TM=Yes |
|||||||||
| 01 | Armrest leather | KIESELGRAU | 1 | 03/2003 | 52207122539 | $563.58 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
S444A=Yes E9HC=Yes N6HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208257757 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather, mosaic/walknappa and Leather High/light gelb |
S444A=Yes Q9=Yes V5LT=Yes |
|||||||||
| 01 | Armrest leather | LIGHTGELB | 1 | 52208270098 | $513.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Leather Mosaico expanded/black or Leather High/black |
S444A=Yes Q9SW=Yes V5SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208270096 | $633.00 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Support left | 1 | 52208099511 | $4.87 | ENDED | Shop at ECS Tuning | ||||
| 02 | Support right | 1 | 52208099512 | $4.87 | ENDED | Shop at ECS Tuning | ||||
| 03 | Torx-countersunk head screw | ISA M6X13 | 4 | 07147202357 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 52208144140 | $4.30 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 05 | Cover | SCHWARZGRAU | 1 | 03/2003 | 52207122567 | $111.32 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 05 | Cover | SCHWARZ | 1 | 52208099961 | $130.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 05 | Cover | GRAU | 1 | 52208099962 | $130.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 05 | Cover | TIRFGRÜN | 1 | 52208099932 | $93.19 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 05 | Cover | ANTHRAZIT | 1 | 52208099931 | $93.19 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 05 | Cover | TANINROT | 1 | 52208099964 | $111.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 05 | Cover | ANTHRAZIT | 1 | 52207890285 | $73.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 05 | Cover | HELLBEIGE | 1 | 52208099963 | $130.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 05 | Cover | SCHWARZGRAU | 1 | 03/2003 | 52207122566 | $111.32 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute" or Fabric, flat Geomix or Imitation leather |
E3=Yes E5=Yes K4=Yes |
|||||||||
| 05 | Cover | SCHWARZ | 1 | 52208099971 | $49.10 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | GRAU | 1 | 52208099973 | $49.10 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover | MINTGRÜN | 1 | 52208099974 | $49.10 | ENDED, +core | Shop at ECS Tuning | |||
