Rear seat center armrest for BMW 3 Series E46 323i (2000)

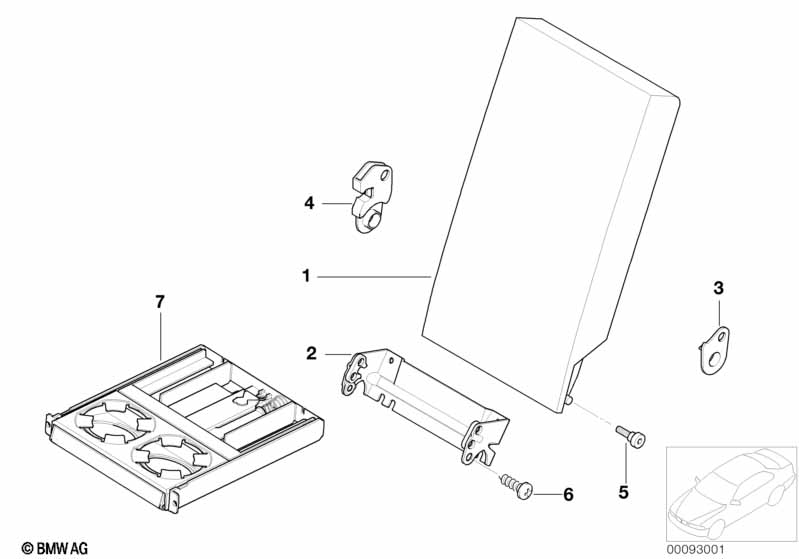

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Through-loading system and Fabric Jacquard/anthracite |
S465A=Yes H9AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207045644 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Fabric Jacquard/gray |
S465A=Yes H9TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 52207045645 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Imitation leather/black |
S465A=Yes K4SW=Yes |
|||||||||
| 01 | Armrest vinyl | SCHWARZ | 1 | 52208254999 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth flock "Raute"/grey |
S465A=Yes E3TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 09/2001 | 52208254985 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Fabric Jacquard bicolor Moda/lavendel |
S465A=Yes E5LA=Yes |
|||||||||
| 01 | Armrest cloth | LAVENDEL | 1 | 09/2001 | 52208254990 | $407.34 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Cloth "Laser"/anthracite |
S465A=Yes G7AT=Yes |
|||||||||
| 01 | Armrest rear, Alcantara uni | ANTHRAZIT | 1 | 52207890430 | $543.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth/leather "Bianco-Nero"/anthracite/w |
S465A=Yes H7BC=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 52207026246 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth flock "Raute"/anthracite |
S465A=Yes E3AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 09/2001 | 52208254982 | $407.34 | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Leather Mosaico expanded/light beige |
S465A=Yes Q9HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 09/2001 | 52208267719 | $641.70 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Cloth/leather "Gran Turismo"/anthracite |
S465A=Yes E4AT=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52208254987 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Vinyl light beige 2 |
S465A=Yes K4HC=Yes |
|||||||||
| 01 | Armrest vinyl | HELLGRAU | 1 | 52208255000 | $392.61 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth flock "Raute"/mint-green |
S465A=Yes E3AP=Yes |
|||||||||
| 01 | Armrest cloth | MINTGRÜN | 1 | 09/2001 | 52208254983 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Fabric, fl.weave,open rhombus/peach |
S465A=Yes E8PP=Yes |
|||||||||
| 01 | Armrest cloth | PEACH | 1 | 09/2001 | 52208267714 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Fabric Tex 2000/anthracite |
S465A=Yes J1AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207047374 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Leather High/brombeer |
S465A=Yes V5BB=Yes |
|||||||||
| 01 | Armrest leather | BROMBEER | 1 | 52207055132 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth flock "Raute"/navy blue |
S465A=Yes E3DL=Yes |
|||||||||
| 01 | Armrest cloth | MARINEBLAU | 1 | 09/2001 | 52208254984 | $407.34 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Leather Montana/basic equip/grau |
S465A=Yes N6TT=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 52208254997 | $543.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Leather Montana/basic equip/taninrot |
S465A=Yes N6TD=Yes |
|||||||||
| 01 | Armrest leather | TANINROT | 1 | 09/2001 | 52208254996 | $543.93 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Fabric/leather "Gran Turismo/tief-grün" |
S465A=Yes E4GG=Yes |
|||||||||
| 01 | Armrest leather | TIEFGRÜN | 1 | 09/2001 | 52208254988 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Fabric Tex 2000/brombeer |
S465A=Yes J1BB=Yes |
|||||||||
| 01 | Armrest cloth | BROMBEER | 1 | 52207047375 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Vinyl light beige 2 |
S444A=Yes S465A=Yes K4HC=Yes |
|||||||||
| 01 | Armrest vinyl | HELLBEIGE | 1 | 52208257782 | $392.61 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
S465A=Yes E9HC=Yes N6HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208254995 | $543.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Cloth/leather "Maglia"/anthrazit or Leather Montana/basic equip/schwarz |
S465A=Yes E9AT=Yes N6SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208254994 | $543.93 | Shop at ECS Tuning | ||||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth "Laser"/anthracite |
S444A=Yes S465A=Yes G7AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207902483 | $563.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Leather Mosaico expanded/light beige |
S444A=Yes S465A=Yes Q9HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 09/2001 | 52208270103 | $513.36 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric Jacquard/anthracite |
S444A=Yes S465A=Yes H9AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207045650 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric Jacquard bicolor Moda/lavendel |
S444A=Yes S465A=Yes E5LA=Yes |
|||||||||
| 01 | Armrest cloth | LAVENDEL | 1 | 09/2001 | 52208257772 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest or Through-loading system and Leather Montana/basic equip/grau |
S444A=Yes S465A=Yes N6TT=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 52208257779 | $543.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth/leather "Bianco-Nero"/anthracite/w |
S444A=Yes S465A=Yes H7BC=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52207026242 | $513.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth flock "Raute"/anthracite |
S444A=Yes S465A=Yes E3AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 09/2001 | 52208257764 | $407.34 | ENDED | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth flock "Raute"/grey |
S444A=Yes S465A=Yes E3TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 09/2001 | 52208257767 | $407.34 | ENDED | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Imitation leather/black |
S444A=Yes S465A=Yes K4SW=Yes |
|||||||||
| 01 | Armrest vinyl | SCHWARZ | 1 | 52208257781 | $392.61 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Leather Montana/basic equip/taninrot |
S444A=Yes S465A=Yes N6TD=Yes |
|||||||||
| 01 | Armrest leather | TANINROT | 1 | 09/2001 | 52208257778 | $563.58 | ENDED | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric/leather "Gran Turismo/tief-grün" |
S444A=Yes S465A=Yes E4GG=Yes |
|||||||||
| 01 | Armrest leather | TIEFGRÜN | 1 | 09/2001 | 52208257770 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth flock "Raute"/mint-green |
S444A=Yes S465A=Yes E3AP=Yes |
|||||||||
| 01 | Armrest cloth | MINTGRÜN | 1 | 09/2001 | 52208257765 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Through-loading system and Leather Mosaico expanded/black or Leather High/black |
S465A=Yes Q9SW=Yes V5SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208267718 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric Tex 2000/anthracite |
S444A=Yes S465A=Yes J1AT=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207047390 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system and Leather Mosaico expanded/lightgelb or Leather High/light gelb |
S465A=Yes Q9LT=Yes V5LT=Yes |
|||||||||
| 01 | Armrest leather | LIGHTGELB | 1 | 52208267720 | $641.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth flock "Raute"/navy blue |
S444A=Yes S465A=Yes E3DL=Yes |
|||||||||
| 01 | Armrest cloth | MARINEBLAU | 1 | 09/2001 | 52208257766 | $407.34 | ENDED | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth/leather "Gran Turismo"/anthracite |
S444A=Yes S465A=Yes E4AT=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52208257769 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric Jacquard/gray |
S444A=Yes S465A=Yes H9TT=Yes |
|||||||||
| 01 | Armrest cloth | GRAU | 1 | 52207045651 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Leather High/brombeer |
S444A=Yes S465A=Yes V5BB=Yes |
|||||||||
| 01 | Armrest leather | BROMBEER | 1 | 52207055136 | $513.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric, fl.weave,open rhombus/peach |
S444A=Yes S465A=Yes E8PP=Yes |
|||||||||
| 01 | Armrest cloth | PEACH | 1 | 09/2001 | 52207027546 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with multi-purpose armrest and Through-loading system and Fabric Tex 2000/brombeer |
S444A=Yes S465A=Yes J1BB=Yes |
|||||||||
| 01 | Armrest cloth | BROMBEER | 1 | 52207047391 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
S444A=Yes S465A=Yes E9HC=Yes N6HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208257777 | $527.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Leather Mosaico expanded/lightgelb or Leather High/light gelb |
S444A=Yes S465A=Yes Q9LT=Yes V5LT=Yes |
|||||||||
| 01 | Armrest leather | LIGHTGELB | 1 | 52208270104 | $513.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Leather Mosaico expanded/black or Leather High/black |
S444A=Yes S465A=Yes Q9SW=Yes V5SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208270102 | $513.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest and Through-loading system and Cloth/leather "Maglia"/anthrazit or Leather Montana/basic equip/schwarz |
S444A=Yes S465A=Yes E9AT=Yes N6SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208257776 | $527.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 02 | Bracket armrest | 1 | 52208176213 | $22.73 | Shop at ECS Tuning | |||||
| 03 | Left center mounting cover | SCHWARZ | 1 | 52208204865 | $3.67 | Shop at ECS Tuning | ||||
| 04 | Right center mounting cover | SCHWARZ | 1 | 52208204630 | $3.67 | Shop at ECS Tuning | ||||
| 05 | Screw | M5X12 | 2 | 52208176214 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister head screw | M6X12-Z1 | 2 | 07119907596 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Cup holder | 1 | 52207041830 | $71.24 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
