Reclining seat fitting for BMW 2500-3.3Li 2500

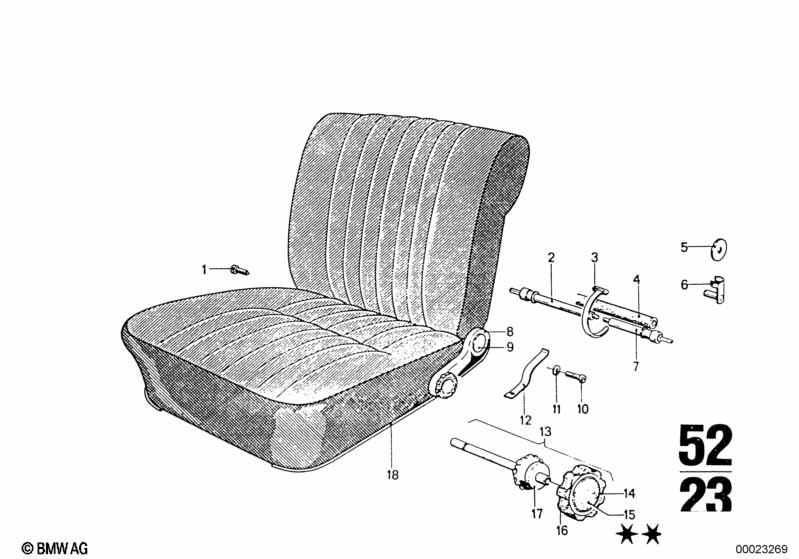

This Reclining seat fitting technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Csk.fillister head srew | 4 | 52101803327 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shaft | 1 | 52101807141 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 2 | 52101803518 | ENDED | Shop at ECS Tuning | |||||
| 06 | Pin | 1 | 52101804329 | ENDED | Shop at ECS Tuning | |||||
| 07 | Shaft | 1 | 52101807142 | ENDED | Shop at ECS Tuning | |||||
| 08 | Recl. seat fitting left | 1 | 52101800599 | ENDED | Shop at ECS Tuning | |||||
| 08 | Recl. seat fitting right | 1 | 52101800600 | ENDED | Shop at ECS Tuning | |||||
| 09 | Cover | 2 | 52101802919 | ENDED | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | 1 | 52101803517 | $0.61 | ENDED | Shop at ECS Tuning | ||||
| 11 | Washer | 4 | 52101804234 | ENDED | Shop at ECS Tuning | |||||
| 12 | Spring | 1 | 52101805033 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 12 | Spring | 1 | 52101805034 | ENDED | Shop at ECS Tuning | |||||
| 13 | Control handle | 1 | 52101840362 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cover | 2 | 52101802920 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 52101840365 | ENDED | Shop at ECS Tuning | |||||
| 16 | Control handle | 2 | 52101802915 | ENDED | Shop at ECS Tuning | |||||
| 17 | Bevel gear | 1 | 52101840364 | ENDED | Shop at ECS Tuning | |||||
| 18 | Intermediate piece | 1 | 52101801667 | ENDED | Shop at ECS Tuning | |||||
| 18 | Intermediate piece | 1 | 52101801668 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
