Reclining seat fitting for BMW 2500-3.3Li 3.0Si (1975)

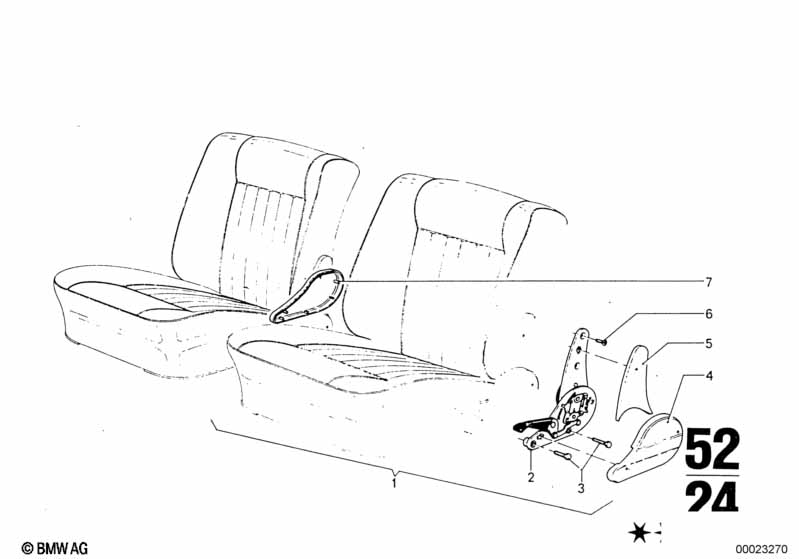

This Reclining seat fitting technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recl. seat fitting left | 1 | 52101820965 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl. seat fitting right | 1 | 52101820966 | ENDED | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting outer left | 1 | 52101819813 | ENDED | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting outer right | 1 | 52101819814 | ENDED | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting inner left | 1 | 52101819815 | ENDED | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting inner right | 1 | 52101819816 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | 8 | 52101823856 | $2.88 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering lower outer left | SCHWARZ | 1 | 52101820725 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering lower outer right | SCHWARZ | 1 | 52101820726 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering upper left | SCHWARZ | 2 | 52101820729 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering upper right | SCHWARZ | 2 | 52101820730 | ENDED | Shop at ECS Tuning | ||||
| 06 | Csk.fillister head srew | 8 | 52101821452 | ENDED | Shop at ECS Tuning | |||||
| 07 | Covering lower inner left | SCHWARZ | 1 | 52101820727 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering lower inner right | SCHWARZ | 1 | 52101820728 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
