Reclining seat fitting for BMW 2500-3.3Li 2500 (1977)

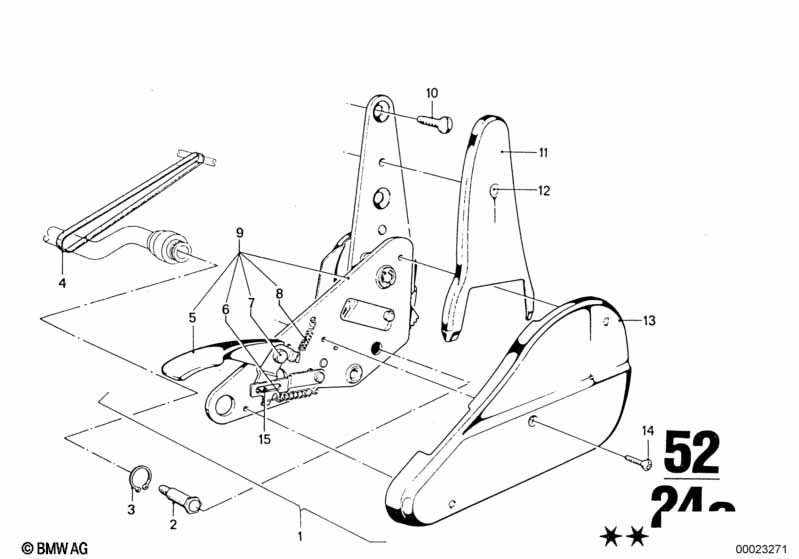

This Reclining seat fitting technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recl. seat fitting left | 1 | 52101841421 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl. seat fitting right | 1 | 52101841422 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | 4 | 52101823856 | $2.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 20X1,2 | 4 | 07119934132 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Rubber Ring | 2 | 52101843100 | $0.54 | Shop at ECS Tuning | |||||
| 05 | Lever left | 1 | 52101841743 | $63.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lever right | 1 | 52101841744 | $63.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Tension spring | 2 | 52101841730 | $1.01 | ENDED | Shop at ECS Tuning | ||||
| 07 | Pin | 2 | 52101841736 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tension spring | 2 | 52101841739 | $15.74 | Shop at ECS Tuning | |||||
| 09 | Recl.seat fitting outer left | 1 | 52101841423 | $72.86 | Shop at ECS Tuning | |||||
| 09 | Recl.seat fitting outer right | 1 | 52101841424 | $72.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | Recl.seat fitting inner left | 1 | 52101841425 | $56.09 | Shop at ECS Tuning | |||||
| 09 | Recl.seat fitting inner right | 1 | 52101841426 | $56.09 | Shop at ECS Tuning | |||||
| 10 | Csk.fillister head srew | AM8X20 | 8 | 52101842674 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Covering upper left | ANTHRAZIT | 1 | 52101853353 | $5.72 | Shop at ECS Tuning | ||||
| 11 | Covering upper right | ANTHRAZIT | 1 | 52101853354 | $5.72 | Shop at ECS Tuning | ||||
| 12 | Countersunk head screw | M5X12 | 4 | 07119928482 | ENDED | Shop at ECS Tuning | ||||
| 13 | Covering lower outer left | ANTHRAZIT | 1 | 52101852833 | $10.14 | Shop at ECS Tuning | ||||
| 13 | Covering lower outer right | ANTHRAZIT | 1 | 52101852834 | $10.14 | ENDED | Shop at ECS Tuning | |||
| 13 | Covering lower inner left | ANTHRAZIT | 1 | 52101852845 | $10.14 | ENDED | Shop at ECS Tuning | |||
| 13 | Covering lower inner right | ANTHRAZIT | 1 | 52101852846 | $11.83 | ENDED | Shop at ECS Tuning | |||
| 14 | Self tapping screw | 5X22 | 4 | 07119918531 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 15 | Pin | 2 | 52101841747 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
