Seat rail for BMW 2500-3.3Li 3.0S (1973)

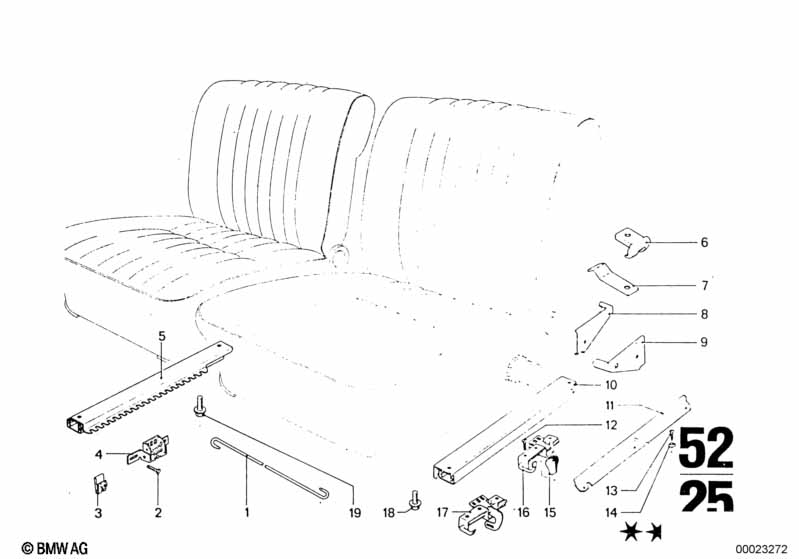

This Seat rail technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection rod | 2 | 52101807478 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X25 | 8 | 52101820255 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 03 | Nut holder | 8 | 51161813920 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seat catch inner left | 1 | 52101807471 | ENDED | Shop at ECS Tuning | |||||
| 04 | Seat catch inner right | 1 | 52101807472 | ENDED | Shop at ECS Tuning | |||||
| 05 | Seat rail inner left | 1 | 52101807467 | ENDED | Shop at ECS Tuning | |||||
| 05 | Seat rail inner right | 1 | 52101807468 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cap | 2 | 52117602106 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bracket left | 1 | 52101802805 | $0.38 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket right | 1 | 52101802806 | ENDED | Shop at ECS Tuning | |||||
| 10 | Seat rail outer left | 1 | 52117602100 | ENDED | Shop at ECS Tuning | |||||
| 10 | Seat rail outer right | 1 | 52117602101 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 52101804111 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 52101804112 | ENDED | Shop at ECS Tuning | |||||
| 12 | Countersunk head screw | M6X12 | 6 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 13 | Recessed oval head sheet-metal screw | ST2,9X13 | 6 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 14 | Hollow washer | 6 | 51417570111 | $1.64 | Shop at ECS Tuning | |||||
| 15 | Handle | 2 | 52101803743 | $10.19 | Shop at ECS Tuning | |||||
| 16 | Seat catch outer left | 1 | 52101807521 | $10.27 | ENDED | Shop at ECS Tuning | ||||
| 16 | Seat catch outer right | 1 | 52101807522 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
