Seat rail for BMW 2500-3.3Li 3.0S (1973)

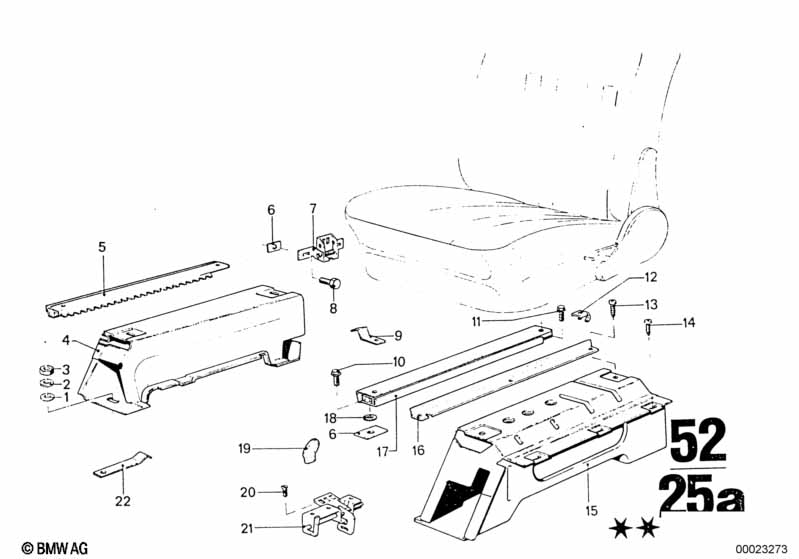

This Seat rail technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 8,4X24X2-ZNS3 | 6 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B8 | 6 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M8-8-ZNS3 | 6 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 03 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Seat rail inner left | 1 | 02/1977 | 52101832583 | $22.32 | ENDED | Shop at ECS Tuning | |||
| 05 | Seat rail inner right | 1 | 02/1977 | 52101832584 | $22.32 | ENDED | Shop at ECS Tuning | |||
| 06 | Nut holder | 12 | 02/1977 | 51161813920 | $1.45 | ENDED | Shop at ECS Tuning | |||
| 06 | Nut holder | M6 | 4 | 09/1973 | 02/1977 | 52101828543 | $1.15 | Shop at ECS Tuning | ||
| 07 | Seat catch inner left | 1 | 52101807471 | ENDED | Shop at ECS Tuning | |||||
| 07 | Seat catch inner right | 1 | 52101807472 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X25 | 4 | 52101820255 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 09 | Bracket left | 4 | 52101802805 | $0.38 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket right | 4 | 52101802806 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X18 | 8 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | M6X18 | 8 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | |||
| 12 | Cap | 2 | 02/1977 | 52117602106 | ENDED | Shop at ECS Tuning | ||||
| 13 | Recessed oval head sheet-metal screw | ST2,9X13 | 6 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 14 | Hex head screw | ST6,3X19-C-Z1 | 3 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Cover | 1 | 52101804112 | ENDED | Shop at ECS Tuning | |||||
| 16 | Covering seat rail left | 1 | 09/1973 | 02/1977 | 52101827457 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering seat rail right | 1 | 09/1973 | 02/1977 | 52101827458 | ENDED | Shop at ECS Tuning | |||
| 17 | Seat rail outer left | 1 | 02/1977 | 52101829901 | $37.75 | ENDED | Shop at ECS Tuning | |||
| 17 | Seat rail outer right | 1 | 02/1977 | 52101829902 | ENDED | Shop at ECS Tuning | ||||
| 17 | Apron | 2 | 09/1973 | 02/1977 | 41328117772 | $226.81 | ENDED | Shop at ECS Tuning | ||
| 17 | Seat rail left | 2 | 09/1973 | 02/1977 | 52101817771 | ENDED | Shop at ECS Tuning | |||
| 18 | Washer | 8-200-ZNS3 | 8 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Handle | 2 | 52101803743 | $10.19 | Shop at ECS Tuning | |||||
| 20 | Countersunk head screw | M6X12 | 6 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 21 | Seat catch outer left | 1 | 09/1973 | 02/1977 | 52101817387 | ENDED | Shop at ECS Tuning | |||
| 21 | Seat catch outer right | 1 | 09/1973 | 02/1977 | 52101817388 | ENDED | Shop at ECS Tuning | |||
| 21 | Seat catch outer left | 1 | 09/1973 | 02/1977 | 52101850861 | ENDED | Shop at ECS Tuning | |||
| 21 | Seat catch outer right | 1 | 09/1973 | 02/1977 | 52101851326 | $22.21 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 22 | Stopper | 2 | 52101850926 | $0.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Seat rail?
- This technical diagram illustrates the Seat rail within the Seats group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #07119904164).
- Which models use the hardware listed in this Seat rail?
- The hardware and components featured in the Seat rail are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Washer (07119904164) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rail assembly?
- Each item in the Seat rail corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 07119904164 for the Seats section.
