Front seat-vertical seat adjuster for BMW 2500-3.3Li 2500 (1973)

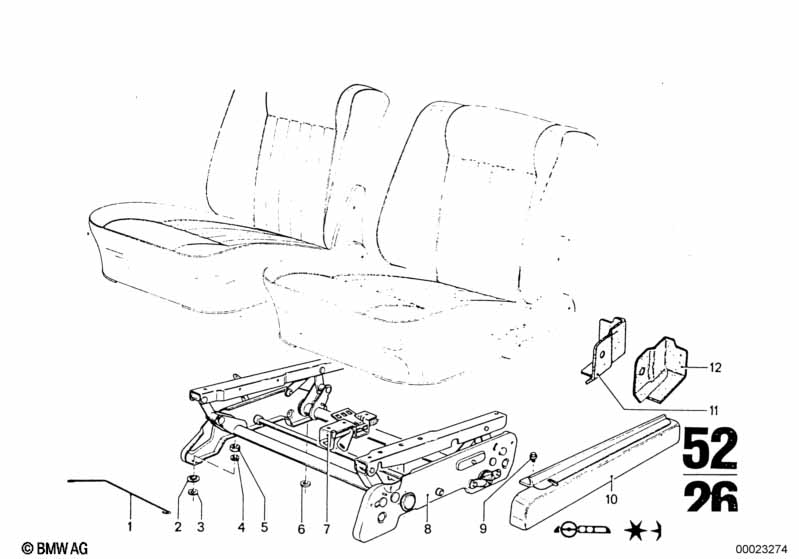

This Front seat-vertical seat adjuster technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection rod, driver's side | 1 | 52101821259 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering piece | 4 | 52101826360 | $0.21 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 6 | 52101826101 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | 8,4X24X2-ZNS3 | 6 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8 | 6 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Washer | 8-200-ZNS3 | 2 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Seat catch outer left | 1 | 52101817387 | ENDED | Shop at ECS Tuning | |||||
| 08 | Vertical seat adjuster left | 1 | 52101823717 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X18 | 2 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering left | 1 | 52101820731 | $24.12 | ENDED | Shop at ECS Tuning | ||||
| 11 | Protection cap inner left | 1 | 52101823715 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 11 | Protection cap outer left | 1 | 52101823716 | $1.22 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
