BMW sports seat frame electrical for BMW 5 Series E39 528i (2000)

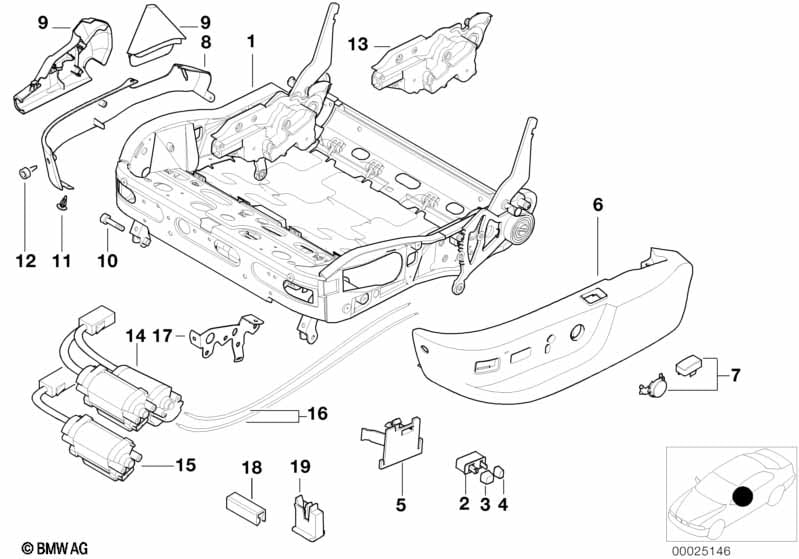

This BMW sports seat frame electrical technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and Sports seat ONLY APPLIES TO CO-DRIVERS SIDE |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat frame | 1 | 09/1997 | 52108162328 | $948.05 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Sports seat ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat frame | 1 | 09/1997 | 52108162327 | $1051.23 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat ONLY APPLIES TO CO-DRIVERS SIDE |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Switch seat adjusting front left | 1 | 09/1997 | 61318368933 | $154.88 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Switch seat adjusting front right | 1 | 09/1997 | 61318373742 | $154.88 | Shop at ECS Tuning | ||||
| 03 | Front left backrest adjustment button | 1 | 09/1997 | 61311379367 | $4.42 | Shop at ECS Tuning | ||||
| 03 | Front right backrest adjustment button | 1 | 09/1997 | 61311379368 | $4.42 | Shop at ECS Tuning | ||||
| 04 | Button f front seat adjustment | 2 | 09/1997 | 61311379369 | $4.42 | Shop at ECS Tuning | ||||
| 05 | Left supporting plate | 1 | 09/1997 | 52108207405 | $1.79 | Shop at ECS Tuning | ||||
| 05 | Carrier plate, right | 1 | 09/1997 | 52108207406 | $1.79 | Shop at ECS Tuning | ||||
| FOR DRIVER AND CO-DRIVER |
||||||||||
| 06 | Covering outer | SCHWARZ | 1 | 10/1997 | 52107058008 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | GRAU | 1 | 10/1997 | 52107058009 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | MARINEBLAU | 1 | 10/1997 | 52107058010 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | SANDBEIGE | 1 | 10/1997 | 52107058011 | $45.18 | Shop at ECS Tuning | |||
| 06 | Covering outer | TOBACCO | 1 | 10/1997 | 52107058014 | $45.18 | +core | Shop at ECS Tuning | ||
| 07 | Set of covers | GRAU | 2 | 09/1997 | 52108219226 | $12.22 | Shop at ECS Tuning | |||
| 07 | Set of covers | SCHWARZ | 2 | 09/1997 | 52108219227 | $12.22 | Shop at ECS Tuning | |||
| 07 | Set of covers | MARINEBLAU | 2 | 09/1997 | 52108219228 | $12.22 | ENDED | Shop at ECS Tuning | ||
| 07 | Set of covers | DUNKELGRUEN | 2 | 09/1997 | 52108219231 | $11.43 | ENDED | Shop at ECS Tuning | ||
| FOR DRIVER AND CO-DRIVER |
||||||||||
| 08 | Covering inner | SCHWARZ | 1 | 09/1997 | 52107058018 | $21.32 | +core | Shop at ECS Tuning | ||
| 08 | Covering inner | GRAU | 1 | 09/1997 | 52107058019 | $21.32 | +core | Shop at ECS Tuning | ||
| For vehicles with Pyrotechnical belt tensioner FOR DRIVER AND CO-DRIVER |
=Yes |
|||||||||
| 09 | Covering left | SCHWARZ | 1 | 09/1997 | 52108238487 | $5.60 | Shop at ECS Tuning | |||
| 09 | Covering right | SCHWARZ | 1 | 09/1997 | 52108238488 | $5.60 | Shop at ECS Tuning | |||
| 10 | Fillister-head screw | M6X20 ROT | 8 | 09/1997 | 52108150020 | $0.46 | Shop at ECS Tuning | |||
| 11 | Clip | 8 | 09/1997 | 52101873544 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Fillister-head screw | M4X10 | 8 | 09/1997 | 07146977086 | $0.48 | Shop at ECS Tuning | |||
| 13 | Gearbox left | 1 | 09/1997 | 52108192965 | $215.12 | Shop at ECS Tuning | ||||
| 13 | Gearbox right | 1 | 09/1997 | 52108192966 | $215.12 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO CO-DRIVERS SIDE |
S459A=Yes |
|||||||||
| 14 | Drive f vertical and backr.tilt adjustm. | FA. RHW/BOSCH | 1 | 09/1997 | 52108350152 | $118.95 | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes |
|||||||||
| 14 | Drive f vertical and backr.tilt adjustm. | 1 | 09/1997 | 67318352193 | $179.57 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO CO-DRIVERS SIDE |
S459A=Yes |
|||||||||
| 15 | Drive, seat depht ajustment | 1 | 09/1997 | 67318352201 | $92.39 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes |
|||||||||
| 15 | Drive, seat depht ajustment | 1 | 09/1997 | 67318352196 | $179.57 | Shop at ECS Tuning | ||||
| 16 | Set of flexible shafts | 4 | 09/1997 | 52108157408 | $66.36 | Shop at ECS Tuning | ||||
| 17 | Mounting parts set | 4 | 09/1997 | 52108157409 | $30.86 | Shop at ECS Tuning | ||||
| 18 | Sliding jaw | 4 | 09/1997 | 54128105582 | $2.95 | Shop at ECS Tuning | ||||
| 19 | Clip | GRUEN | 4 | 09/1997 | 52108221512 | $0.35 | Shop at ECS Tuning | |||
