Front seat frame mech./el./singl.parts for BMW 3 Series E46 330Ci (2003)

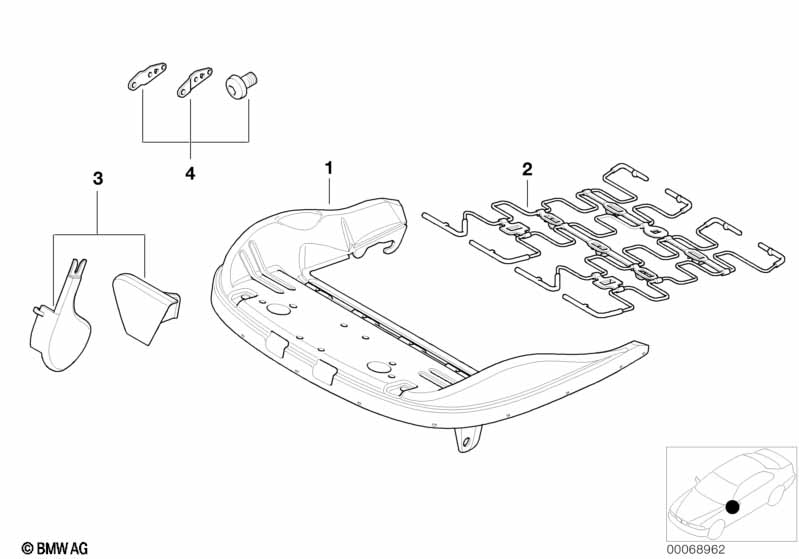

This Front seat frame mech./el./singl.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Front seat frame mech./el./singl.parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seat pan 2 52108226420 $52.77 Shop at ECS Tuning
02 Elastic mat 2 52108260868 $20.15 Shop at ECS Tuning
03 Left set of covers SCHWARZ 2 52108260845 $6.48 Shop at ECS Tuning
03 Right set of covers SCHWARZ 2 52108260846 $6.48 Shop at ECS Tuning
03 Left set of covers GRAU 2 52108260847 $6.48 Shop at ECS Tuning
03 Right set of covers GRAU 2 52108260848 $6.48 Shop at ECS Tuning
03 Left set of covers HELLBEIGE 2 52108260849 $5.88 Shop at ECS Tuning
03 Right set of covers HELLBEIGE 2 52108260850 $5.88 Shop at ECS Tuning
04 set of fittings for seat shell 2 52108240499 $5.48 Shop at ECS Tuning
